High-Voltage HT59 Series Ceramic Capacitors
High-Voltage HT59 Series Ceramic Capacitors
SKU:CER-813148
High-Voltage ceramic capacitors for precise performance in high-power applications. 25kVDC, 50-1500pF, Class I TC options. Ideal for demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High-Voltage HT59 Series Ceramic Capacitors
$39.99
Quantity: 1
Claim Your Seller Account
High-Voltage HT59 Series Ceramic Capacitors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

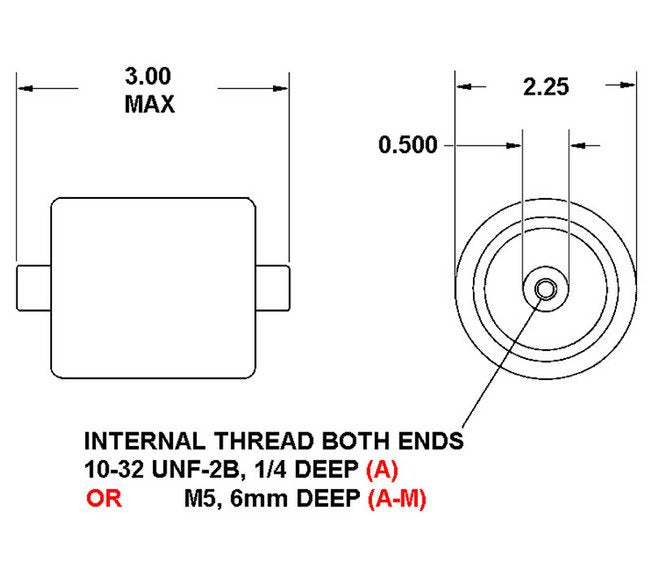

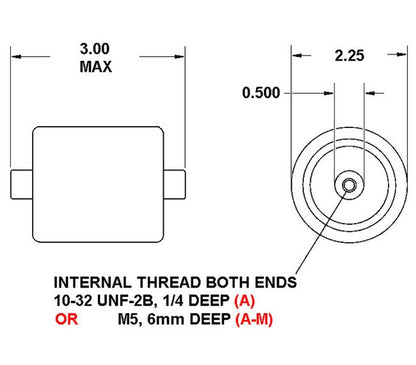

The HT59 Series Ceramic Capacitors are designed for high-performance applications requiring a 25 kVDC working voltage. With a maximum power handling of 50 kVA and a capacitance range of 50 to 1500 pF, these capacitors offer superior reliability and efficiency. Measuring 2.25" in diameter and 3" in length, they are available with a choice of four Class I TC dielectrics, including NP0, ensuring stable and precise performance across a frequency range of 0.509 MHz to 18.0 MHz. Ideal for demanding environments, these capacitors come with a threaded 10-32 connection for secure installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
50 pF
Specifications Dielectric Tc
NP0
Specifications Fh
18.0 MHz
Specifications Fl
0.509 MHz
Specifications Imax Rms
16.8 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
