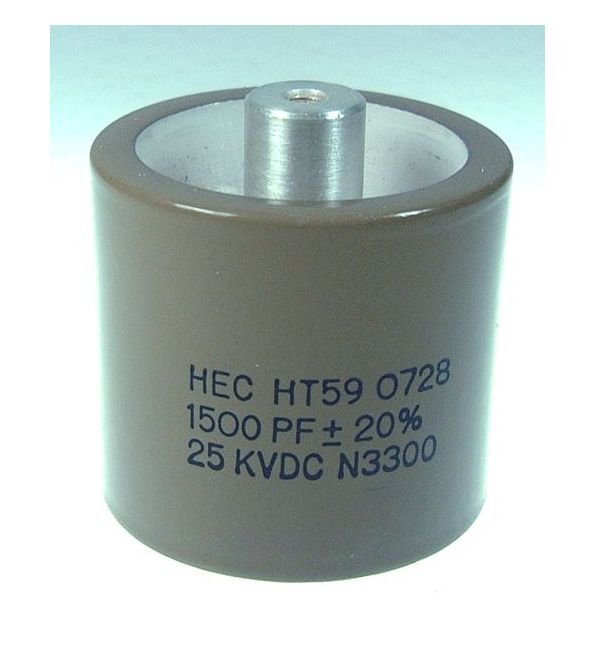

High Voltage HT59 Series Ceramic Capacitors
High Voltage HT59 Series Ceramic Capacitors
SKU:CER-2765bc
High voltage ceramic capacitors with 25 kVDC working voltage, ideal for demanding applications. Choose from four Class I TC options.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage HT59 Series Ceramic Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage HT59 Series Ceramic Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT59 Series Ceramic Capacitors are engineered for demanding applications requiring high voltage tolerance. With a working voltage of 25 kVDC and a capacitance range from 50 to 1500 pF, these capacitors deliver exceptional performance and reliability. Featuring a maximum power handling of 50 kVA, these capacitors are designed with precision and durability in mind. Choose from four Class I TC variations to meet specific technical requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
800 pF
Specifications Dielectric Tc
N5250
Specifications Fh
2.10 MHz
Specifications Fl
0.0318 MHz
Specifications Imax Rms
23.0 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
