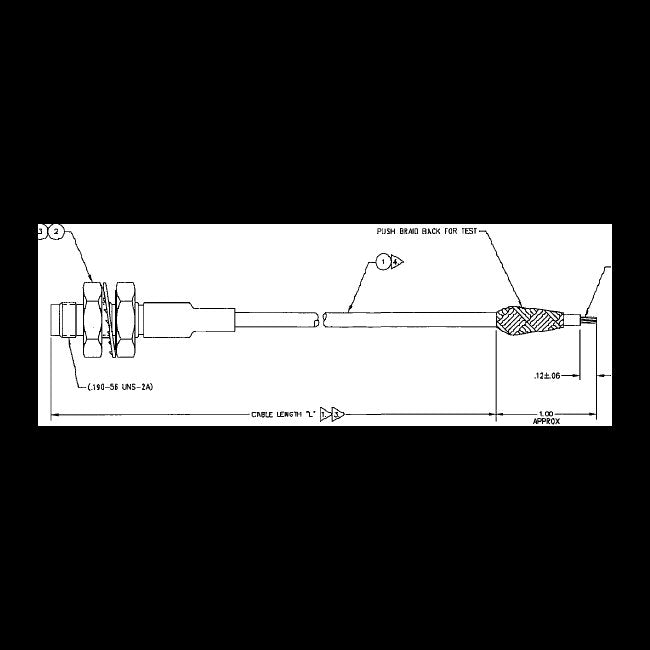

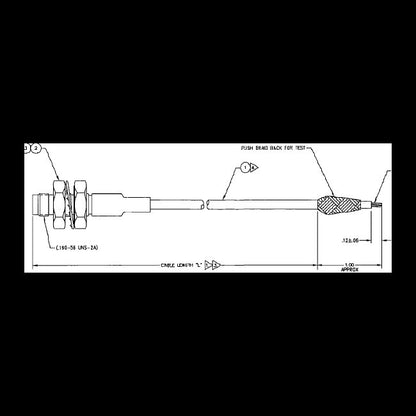

High Voltage Male Stub Cable Assembly
High Voltage Male Stub Cable Assembly
SKU:HIG-bdcf1b
Reliable High Voltage Male Stub Cable Assembly for extreme applications. 5 kVDC, 70,000 ft. altitude rating, ideal for Aerospace/Defense.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The High Voltage Male Stub Cable Assembly is part of the 600 Series featuring a subminiature, high voltage connector designed for reliability in Aerospace/Defense and commercial applications. Rated for 5 kVDC and altitude up to 70,000 ft., this assembly ensures secure connections. With a 1 Amp current rating, gold-plated brass coupling nut, and BeCu contacts, it meets stringent performance standards. Ideal for applications requiring durability and precision in extreme conditions. Special adapters available on request.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications End 1
1674528
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600 plug assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
