High Voltage Metallized Film Capacitor - CHG Series

High Voltage Metallized Film Capacitor - CHG Series

SKU:MET-303832

Enhance your high-voltage systems with the CHG Series Metallized Film Capacitor - Reliable, efficient, and stackable.

Regular price $99.99
Regular price Sale price $99.99
Sale

Initiate Order

High Voltage Metallized Film Capacitor - CHG Series

High Voltage Metallized Film Capacitor - CHG Series

$99.99

Quantity: 1

Claim Your Seller Account

High Voltage Metallized Film Capacitor - CHG Series

High Voltage Metallized Film Capacitor - CHG Series

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

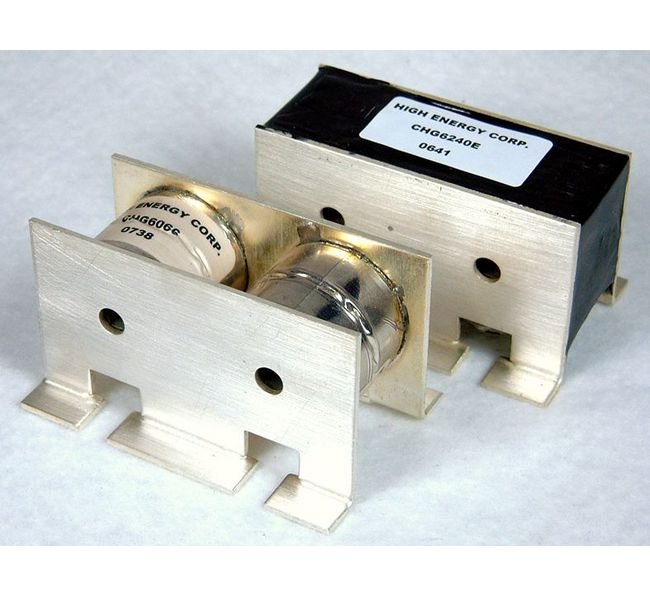

The Standard CHG Series Metallized Film Capacitor is a reliable solution for high-voltage applications, with a working voltage of up to 700 VRMS and a maximum power of 375 kVA. Featuring conduction-cooled design and stackable configurations, this capacitor offers exceptional performance and versatility. With a capacitance range of 0.11 to 2.4 µF and stringent quality control meeting industry standards, this capacitor ensures stability and efficiency in demanding environments.

Product Specifications

Specifications Cap
0.11 µF
Specifications Capacitance Range
0.11 to 2.4 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

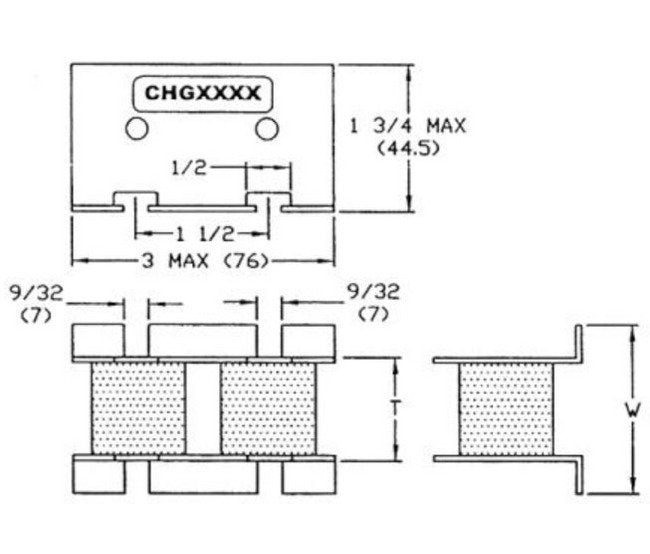

Specifications Dimensions
3 x 2 x 1 3/4 in | 76.2 x 50.8 x 39.2 mm
Specifications Dimension T
1 3/16 in | 30.2 mm
Specifications Dimension W
2 in | 51 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
375 kHz
Specifications Fl
369 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
180 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
125 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.23 kg | 0.50 lb
