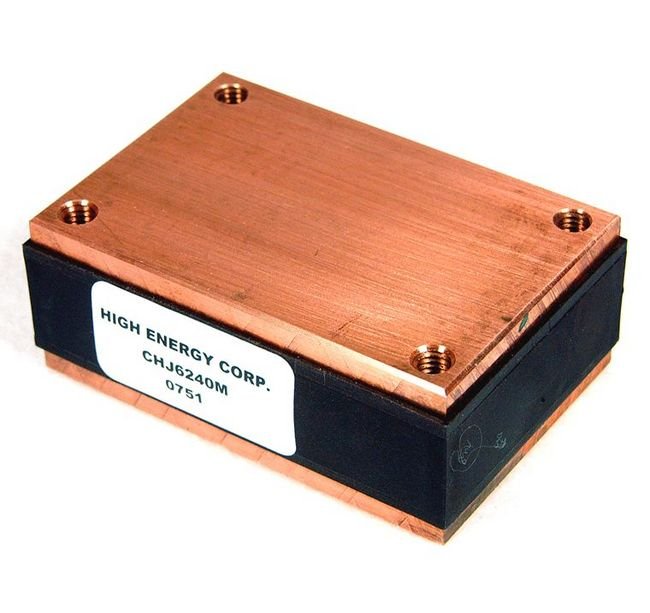

High-Voltage Metallized Film Capacitors - CHJ Series
High-Voltage Metallized Film Capacitors - CHJ Series
SKU:MET-b6df8a
High-voltage metallized film capacitors with up to 700 VRMS, 210 kVA max power, and conduction cooling. Precision-engineered for reliability and performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Voltage Metallized Film Capacitors - CHJ Series
$49.99
Quantity: 1
Claim Your Seller Account
High-Voltage Metallized Film Capacitors - CHJ Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHJ Series Metallized Film Capacitors are engineered for high-performance applications, offering up to 700 VRMS working voltage and 210 kVA max power. With a capacitance range from 0.18 to 5.0 µF and ±10% tolerance, these capacitors ensure precise and reliable operation. Designed for conduction cooling and stackable configurations, they feature low dissipation factor, compact dimensions, and meet stringent industry standards for optimal performance and durability.
Product Specifications
Specifications Cap
0.18 µF
Specifications Capacitance Range
0.18 to 5.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

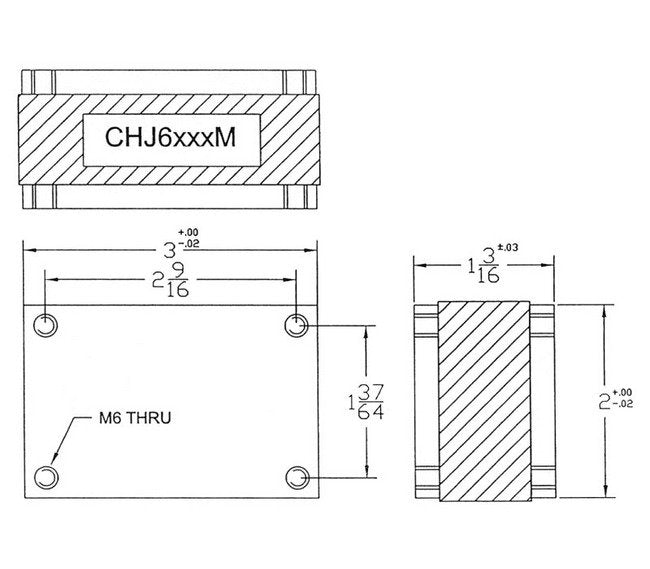

Specifications Dimensions
3 x 2 x 1 7/16 in | 76.2 x 50.8 x 36.5 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
591 kHz
Specifications Fl
379 kHz
Specifications Fmax
600 kHz
Specifications Imax Rms
375 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
210 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.27 kg | 0.6 lb
