High-Voltage Metallized Film Capacitors - CHJ Series
High-Voltage Metallized Film Capacitors - CHJ Series
SKU:MET-1adb21
High-performance CHJ Series Metallized Film Capacitors with up to 500V RMS and 210 kVA max power, ideal for high-current applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Voltage Metallized Film Capacitors - CHJ Series
$49.99
Quantity: 1
Claim Your Seller Account
High-Voltage Metallized Film Capacitors - CHJ Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

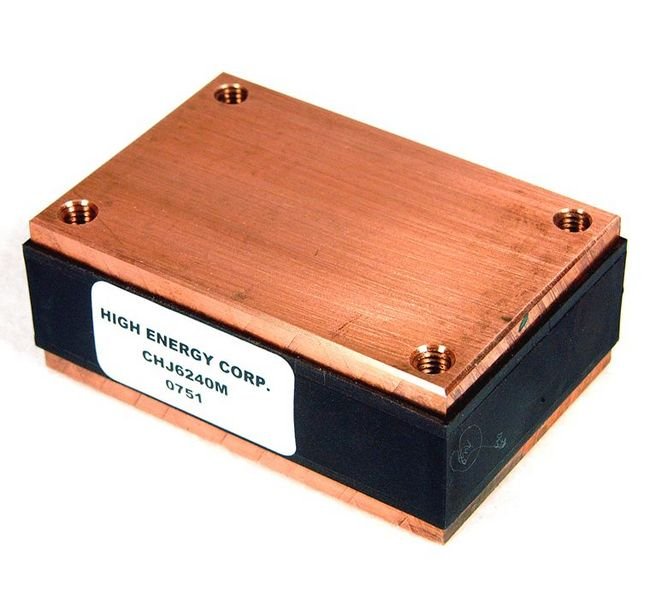

The CHJ Series Metallized Film Capacitors offer exceptional performance with up to 500V RMS working voltage and 210 kVA max power. These capacitors are designed for high-current applications, with a capacitance range of 0.18 to 5.0 µF and a maximum current rating of 525A RMS. Suitable for conduction-cooled setups, these capacitors are stackable in series and parallel configurations, providing versatility in various applications. With a compact design and low dissipation factor, these capacitors ensure efficient operation even in demanding environments.
Product Specifications
Specifications Cap
1.2 µF
Specifications Capacitance Range
0.18 to 5.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

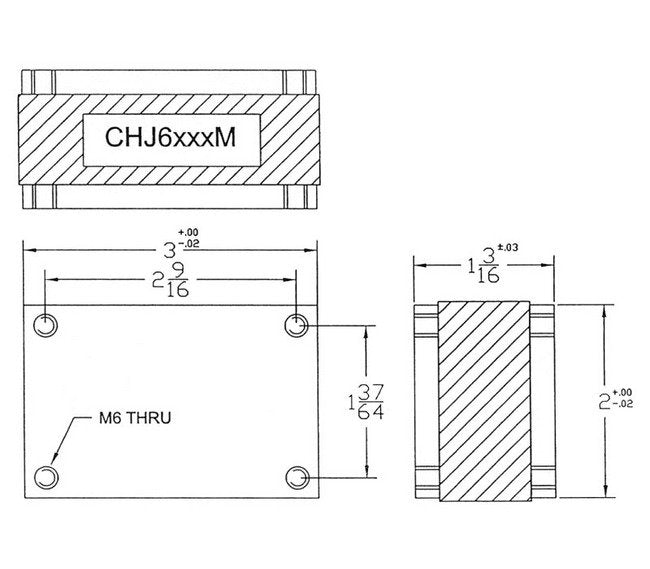

Specifications Dimensions
3 x 2 x 1 7/16 in | 76.2 x 50.8 x 36.5 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
174 kHz
Specifications Fl
111 kHz
Specifications Fmax
300 kHz
Specifications Imax Rms
525 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
210 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
500 V
Specifications Weight
0.27 kg | 0.6 lb
