High Voltage Mica Capacitor 5.0 kVDC - High Energy Devices
High Voltage Mica Capacitor 5.0 kVDC - High Energy Devices
SKU:HIG-e0898c
Reliable High Voltage Mica Capacitor 5.0 kVDC - Ideal for high energy applications, 5 nF capacitance, ±10% tolerance, and 10.0 kV dielectric voltage.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Mica Capacitor 5.0 kVDC - High Energy Devices
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Mica Capacitor 5.0 kVDC - High Energy Devices
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Mica Capacitor 5.0 kVDC is a reliable component with a capacitance of 5 nF and a capacitance tolerance of ±10%. It features a robust dielectric withstanding voltage of 10.0 kV for 5 seconds, making it ideal for high energy applications. With dimensions of 1.44 x 0.82 x 0.17 inches, this standard part is designed for efficiency and durability. The capacitor ensures high insulation resistance and low dissipation factor, meeting stringent industry requirements for performance and reliability.
Product Specifications
Cable Preparation Insulation Resistance
25 MΩ*µF at125°C, need not exceed 1GΩ | 4000 MΩ*µF at25°C, need not exceed 100GΩ
Specifications Capacitance
5 nF
Specifications Capacitance Tolerance
±10%
Specifications Dielectric Withstanding Voltage
10.0 kV proof for 5 seconds | 5 kV rated | 7.5 kV burn-in for 2 hours at 100°C
Specifications Dissipation Factor
0.005 Max. at 25°C, 1 kHZ

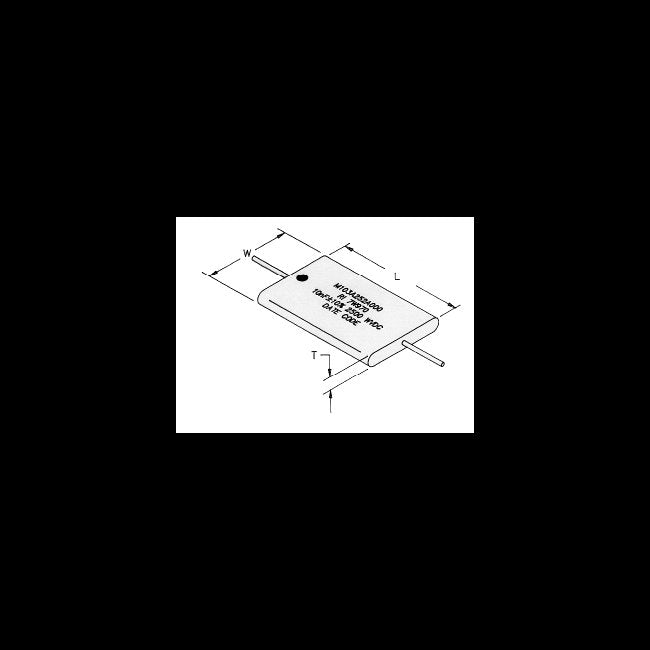

Specifications Length
1.44 in | 36.6 mm
Specifications Standardnon Standard
Standard Part
Specifications Thickness
0.17 in | 4.3 mm
Specifications Voltage Rating
5 kVDC
Specifications Width
0.82 in | 20.8 mm
