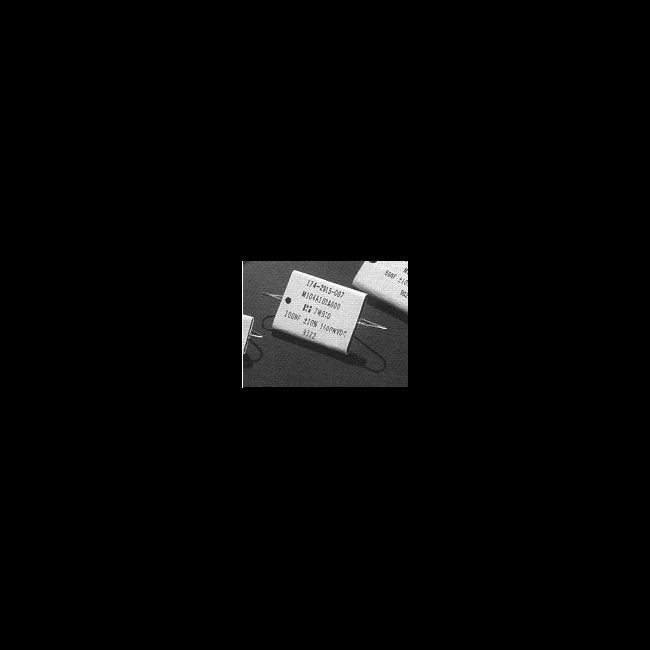

High Voltage Mica Capacitor 7.5kVDC - Standard Grade
High Voltage Mica Capacitor 7.5kVDC - Standard Grade
SKU:HIG-2692ed
High Voltage Mica Capacitor 7.5kVDC - Reliable performance for high energy devices, 2.5nF capacitance, compact design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Mica Capacitor 7.5kVDC - Standard Grade
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Mica Capacitor 7.5kVDC - Standard Grade
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Mica Capacitor 7.5kVDC is a reliable component ideal for high energy devices, featuring a capacitance of 2.5nF with a tolerance of ±10%. With a compact design of 1.56 x 1.56 x 0.19 inches, this capacitor offers exceptional dissipation factor of 0.005 at 25°C, ensuring stable performance. It meets stringent standards with a dielectric withstanding voltage of 7.5kV rated, insulation resistance of 25 MΩ*µF at 125°C, and complies with industry specifications. Suitable for various applications requiring high voltage tolerance and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Cable Preparation Insulation Resistance
25 MΩ*µF at125°C, need not exceed 1GΩ | 4000 MΩ*µF at25°C, need not exceed 100GΩ
Specifications Capacitance
2.5 nF
Specifications Capacitance Tolerance
±10%
Specifications Dielectric Withstanding Voltage
11.2 kV burn-in for 2 hours at 100°C | 15.0 kV proof for 5 seconds | 7.5 kV rated
Specifications Dissipation Factor
0.005 Max. at 25°C, 1 kHZ

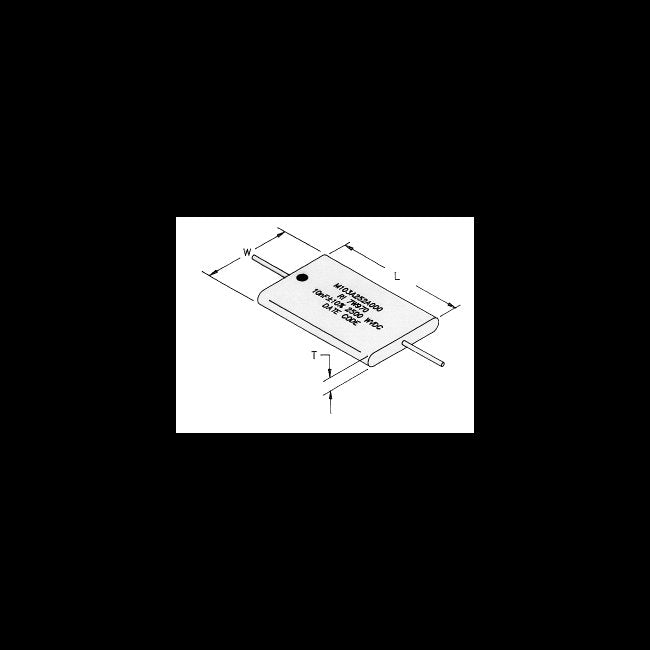

Specifications Length
1.56 in | 39.6 mm
Specifications Standardnon Standard
Standard Part
Specifications Thickness
0.19 in | 4.8 mm
Specifications Voltage Rating
7.5 kVDC
Specifications Width
1.56 in | 21.3 mm
