High Voltage Micro Flex 18 kVDC Wire
High Voltage Micro Flex 18 kVDC Wire
SKU:HIG-5bb922
High Voltage Micro Flex 18 kVDC Wire - High-performance wire with PFA insulation, optional silicone coating, and 18 kVDC rating. Ideal for extreme temperature applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage Micro Flex 18 kVDC Wire
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage Micro Flex 18 kVDC Wire
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

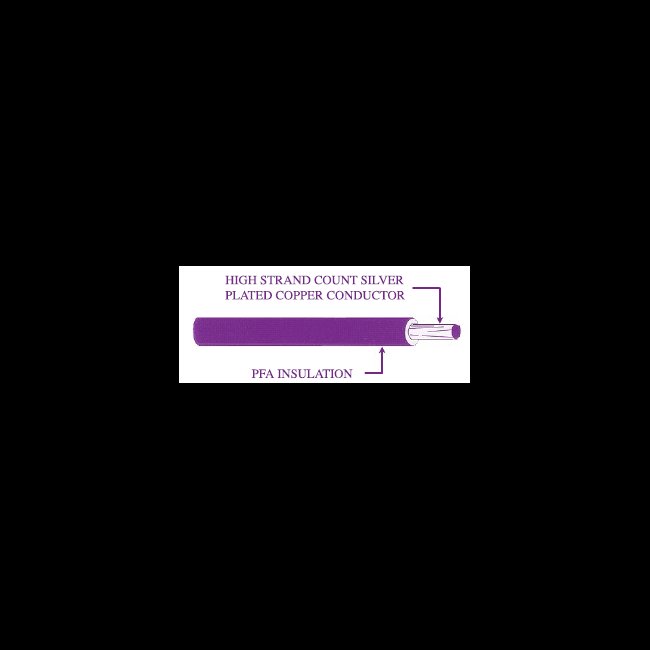

The High Voltage Micro Flex⢠Wire and Cable is designed for high performance in demanding environments. Featuring a PFA insulation with the option of a silicone rubber coating, this wire offers exceptional dielectric properties and durability. With a conductor gauge of 24 AWG and a voltage rating of 18 kVDC, it ensures reliable power transmission even in extreme temperatures ranging from -55 to 125 ºC. Whether uncoated or silicone-coated, this wire provides superior conductivity and can meet various color preferences. Ideal for applications requiring high voltage capabilities and excellent insulation.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-5142
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-5143
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Options Optional Color
Black | Blue | Brown | Green | Grey | Orange | Red | Violet | White | Yellow
Specifications Conductor Diameter
0.022 in | 0.58 mm
Specifications Conductor Gauge
24 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
41/40
Specifications Default Color
Natural
Specifications Diameter Over Insulator
0.050 in | 1.27 mm
Specifications Insulator Material
PFA
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.050 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
18 kVDC
Specifications Wire Type
Non-Shielded
