High Voltage Micro Flex Cable
High Voltage Micro Flex Cable
SKU:HIG-bdff98
High Voltage Micro Flex Cable: Durable, high voltage wire with PFA insulation, silicone rubber coating, and 16 AWG conductor.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Micro Flex Cable
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Micro Flex Cable
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

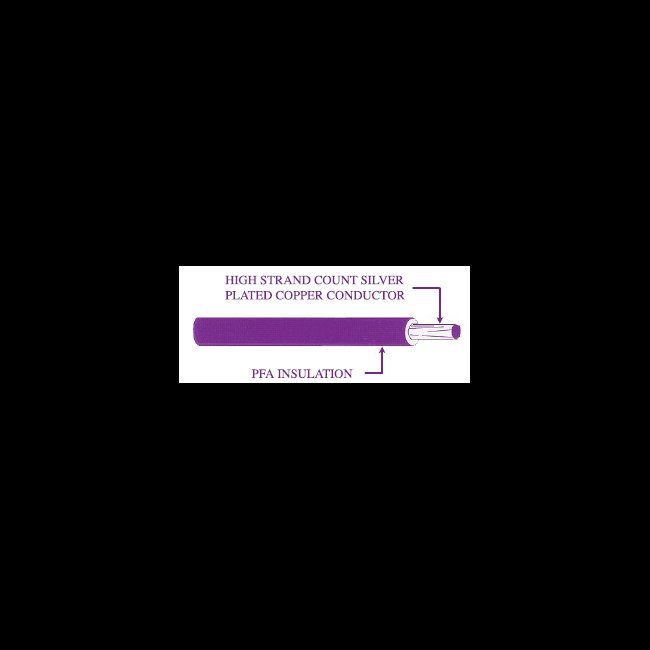

The High Voltage Micro Flex Cable is a durable solution designed for demanding applications requiring high voltage capabilities. Featuring a PFA insulation and available with a silicone rubber coating, this cable ensures optimal performance in a wide temperature range (-55 to +125 ºC). With a conductor gauge of 16 AWG, silver-plated copper conductor, and a voltage rating of 25 kVDC, this cable offers superior dielectric properties and a reliable electrical connection. Ideal for both consumer and institutional buyers seeking high-quality wire and cable solutions.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Options Optional Color
Black | Blue | Brown | Green | Grey | Orange | Red | Violet | White | Yellow
Specifications Conductor Diameter
0.059 in | 1.50 mm
Specifications Conductor Gauge
16 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
41/32
Specifications Default Color
Natural
Specifications Diameter Over Insulator
0.125 in | 3.17 mm
Specifications Insulator Material
PFA
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.125 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
25 kVDC
Specifications Wire Type
Non-Shielded
