High Voltage Micro Flex Cable

Name: High Voltage Micro Flex Cable
Brand: Teledyne Reynolds
SKU: HIG-737c6d
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-737c6d

High Voltage Micro Flex Cable - Reliable, durable, and versatile. PFA insulated with silicone rubber coating option. 29 AWG, 3 kVDC, -55 to 125°C. Various color choices.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

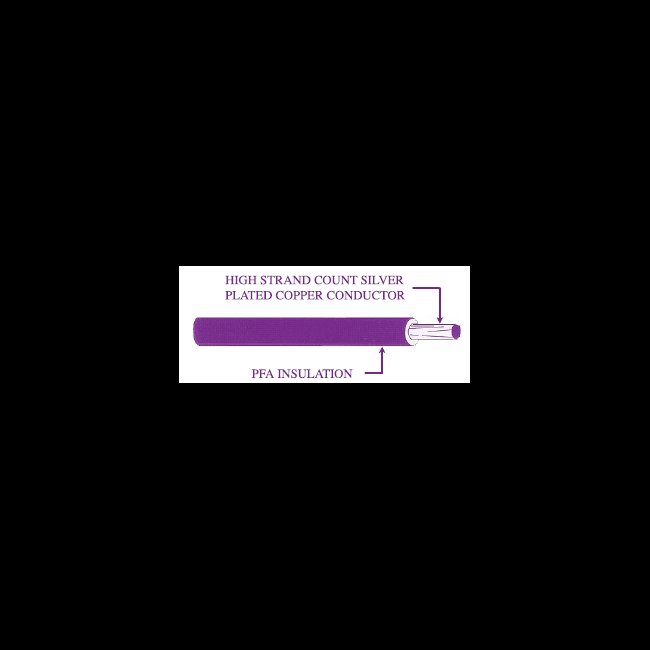

The High Voltage Micro Flex Cable is a versatile solution suitable for both consumer and institutional applications. With PFA insulation and a superior silicone rubber coating option, this cable offers exceptional durability and a secure dielectric bond. Featuring a conductor gauge of 29 AWG and a voltage rating of 3 kVDC, this standard part ensures reliable performance in a temperature range of -55 to 125°C. Available in various color options, this cable is ideal for a range of wiring needs.

Product Specifications

Alternate Cable Part Number Equivalents Etched Part Number

178-5133

Alternate Cable Part Number Equivalents Silicone Coated Part Num

178-5134

Cable Wire Properties Etched

Cable Wire Properties Jacketed

Cable Wire Properties Silicone Coated

Cable Wire Properties Twisted Pair

Cable Wire Properties Twisted Shielded Pair

Options Optional Color

Specifications Conductor Diameter

0.012 in | 0.33 mm

Specifications Conductor Gauge

29 AWG

Specifications Conductor Material

Copper

Specifications Conductor Plating

Silver Plated

Specifications Conductor Strands

51/46

Specifications Default Color

Natural

Specifications Diameter Over Insulator

0.019 in | 0.48 mm

Specifications Insulator Material

PFA

Specifications Operating Temperature

-55 to 125 ÂºC

Specifications Overall Diameter

0.019 in

Specifications Standardnon Standard

Standard Part

Specifications Voltage Rating

3 kVDC

Specifications Wire Type

Non-Shielded
