High Voltage Micro Flex Wire and Cable
High Voltage Micro Flex Wire and Cable
SKU:HIG-c2d31a
High Voltage Micro Flex Wire and Cable - Superior dielectric properties with PFA insulation, silicone rubber coating, and 5 kVDC voltage rating.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage Micro Flex Wire and Cable
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage Micro Flex Wire and Cable
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

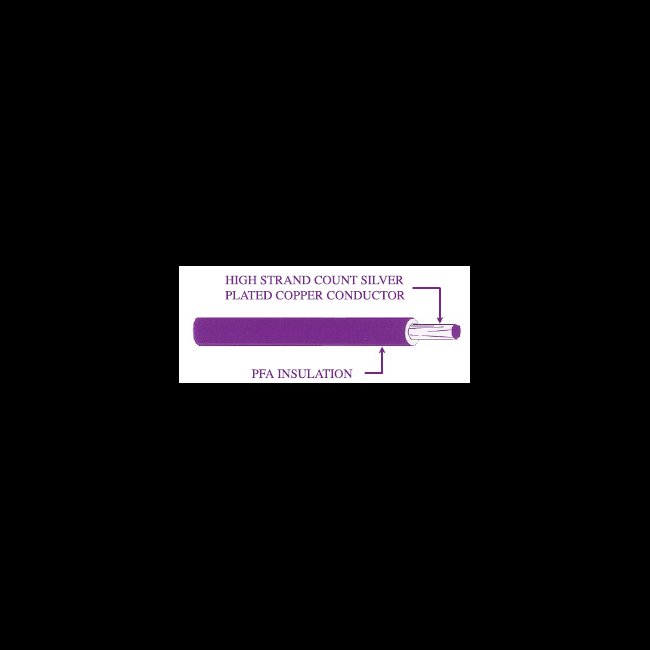

The High Voltage Micro Flex Wire and Cable is designed for demanding applications where superior dielectric properties are essential. Available uncoated or with a silicone rubber coating, this cable features PFA insulation with a silicone rubber coating for enhanced durability and a superior dielectric bond. With a conductor gauge of 29 AWG and a voltage rating of 5 kVDC, this cable operates flawlessly in temperatures ranging from -55 to 125 °C. Its silver-plated copper conductor and standard part designation make it a reliable choice for various high voltage applications.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-5136
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-5137
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Options Optional Color
Black | Blue | Brown | Green | Grey | Orange | Red | Violet | White | Yellow
Specifications Conductor Diameter
0.012 in | 0.33 mm
Specifications Conductor Gauge
29 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
51/46
Specifications Default Color
Natural
Specifications Diameter Over Insulator
0.025 in | 0.64 mm
Specifications Insulator Material
PFA
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.025 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Non-Shielded
