High Voltage Microflex Silicone Rubber Coated Wire and Cable
High Voltage Microflex Silicone Rubber Coated Wire and Cable
SKU:HIG-b5f66f
High Voltage Microflex - Premium silicone rubber coated wire for high voltage applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Microflex Silicone Rubber Coated Wire and Cable
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Microflex Silicone Rubber Coated Wire and Cable
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

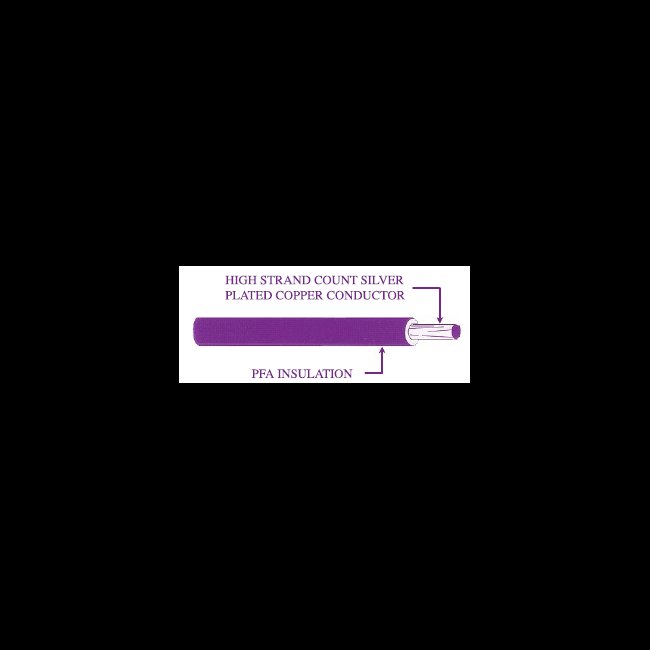

The High Voltage Microflex Silicone Rubber Coated Wire and Cable offers exceptional durability and performance for high voltage applications. Its PFA insulation with a silicone rubber coating ensures superior dielectric properties, while the silver-plated copper conductor provides reliable conductivity. Operating at temperatures from -55 to +125 °C, this cable meets stringent institutional procurement standards and guarantees a secure electrical connection. Choose from a range of color options to suit your specific installation requirements.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-5139
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-5140
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Options Optional Color
Black | Blue | Brown | Green | Grey | Orange | Red | Violet | White | Yellow
Specifications Conductor Diameter
0.014 in | 0.37 mm
Specifications Conductor Gauge
28 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
41/44
Specifications Default Color
Natural
Specifications Diameter Over Insulator
0.042 in | 1.07 mm
Specifications Insulator Material
PFA
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.042 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
13.5 kVDC
Specifications Wire Type
Non-Shielded
