High Voltage Nylon Potting Boot Connector Accessory
High Voltage Nylon Potting Boot Connector Accessory
SKU:HIG-987bc4
High voltage connector accessory with brass and bronze contacts, aluminum shell, corona-resistant design. Ideal for Radar, Power Supplies. Compliant with MIL standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Nylon Potting Boot Connector Accessory
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Nylon Potting Boot Connector Accessory
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

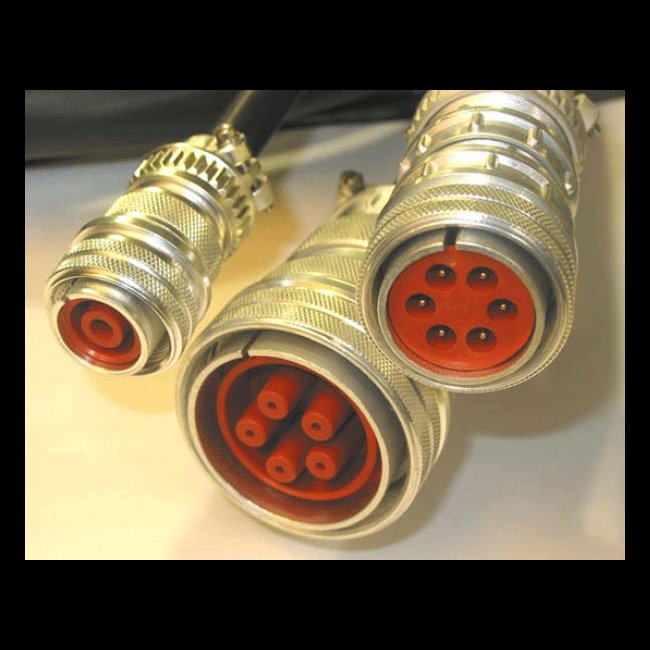

The Nylon Potting Boot Connector Accessory from the CMC Series Electrical Connectors is a cutting-edge solution for high voltage applications. Crafted with precision, the connector features brass pin contacts and bronze socket contacts plated as per MIL standards for superior conductivity. With an aluminum alloy shell and coupling nut compliant with MIL-C-5015, MS-3100 series, this connector ensures durability in challenging environments. Its corona-resistant design, corona-resistant tapered interface, and compatibility with shielded or unshielded cables make it ideal for Electronic Countermeasures, Radar systems, and more, meeting the stringent requirements of institutional procurement standards.
Product Specifications
Applications 0
Electronic Countermeasures Radar CRT Displays Travelling Wave Tubes High Voltage Power Supplies Medical ApplicationsMedical Applications
Specifications Environmental Temperature
-55 to +125 ºC
Specifications Features
Corona Resistant Tapered InterfaceField or Factory AssembledUse with Shielded or Unshielded CableVarious Hardware Plating Available
Specifications Finish Specifications And Options
Electroless Nickel Plated per MIL-C-26074Optional Stainless Steel Hardware Stainless steel per ASTM A582, passivated per QQ-P-35
Specifications Insulators Material
Silicone Rubber per ZZ-R-765Thermoset glass filled Epoxy or Diallyl Phathalate per MIL-M-14
Specifications Pin Contacts Material
Brass, gold plated per MIL-G-452C4.
Specifications Sea Level Altitude
0 to 70,000 ft
Specifications Shell Coupling Nut And Related Hardware Material
Aluminum alloy in accordance with MIL-C-5015, MS-3100 series
Specifications Socket Contacts Material
Commercial bronze, Gold plated per MIL-G-45204
Specifications Wires Optional
No. 16 AWG thru No. 24 AWG stranded, PTFE or silicone coated insulated
