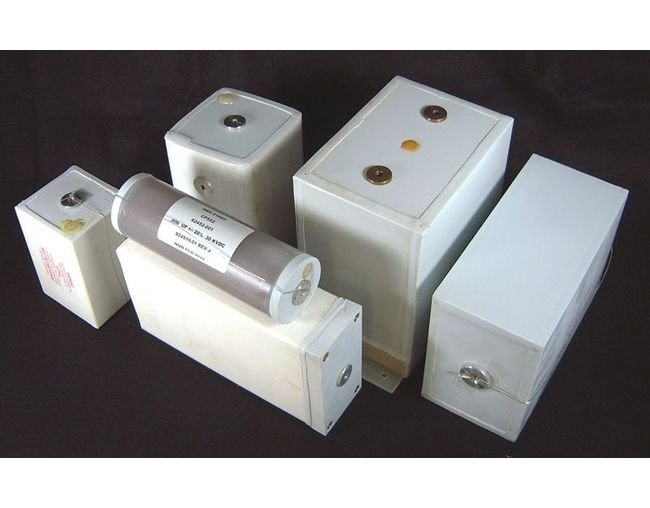

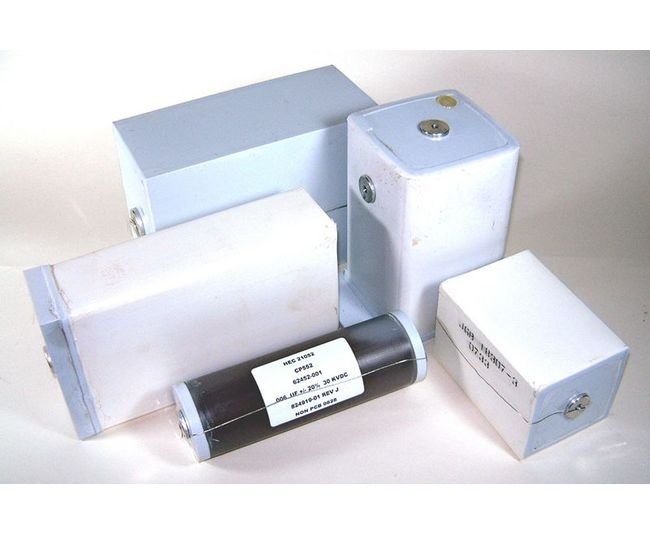

High Voltage Oil-Filled Capacitor - CP Series (0.025 µF, 75000 V)
High Voltage Oil-Filled Capacitor - CP Series (0.025 µF, 75000 V)
SKU:OIL-1a879c
High Voltage Oil-Filled Capacitor with 0.025 µF capacitance & 75000 VDC rating. Reliable, durable, & compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitor - CP Series (0.025 µF, 75000 V)
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitor - CP Series (0.025 µF, 75000 V)
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CP Series Oil-Filled Capacitors are meticulously engineered for superior performance in high voltage applications. With a capacitance of 0.025 µF and a voltage rating of 75000 VDC, these capacitors offer exceptional reliability and efficiency. Crafted with welded polypropylene cases and advanced dielectric materials, they ensure long-lasting durability and robust protection against environmental factors. Operable within a wide temperature range (-40 to +90 ºC) and boasting high insulation resistance, these capacitors excel in demanding industrial settings. Compliant with federal procurement standards and industry-specific certifications, the CP Series guarantees top-tier quality and adherence to stringent regulatory requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.025 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

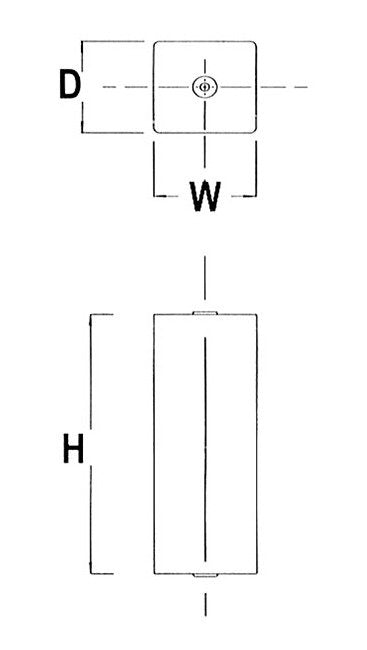

Specifications Dimension D
3.25
Specifications Dimension H
15
Specifications Dimension W
3.5
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
75000 V
