Enhance your DC filter systems with LC Series Oil-Filled Capacitors - reliable performance at 20,000 VDC.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitor - LC Series
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitor - LC Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

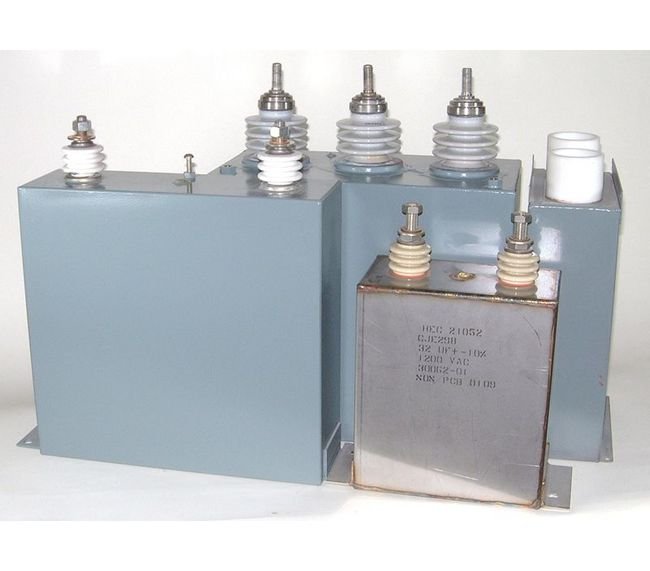

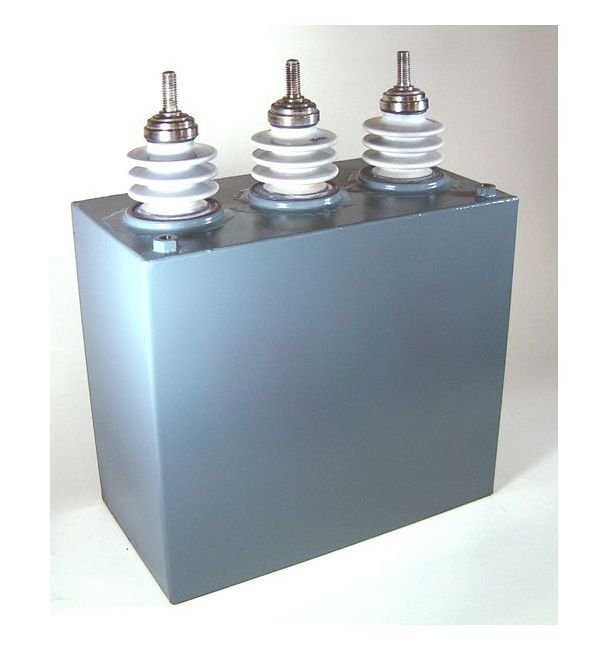

The LC Series Oil-Filled Capacitors offer exceptional performance in DC filter applications with a capacitance range of 1 to 20 µF and a voltage rating of 20,000 VDC. Featuring welded stainless steel cans, these capacitors provide reliable operation in harsh environments. Constructed with Kraft paper and polypropylene dielectric impregnated with an environmentally compatible solution, these capacitors ensure long-term stability and high insulation resistance. The LC Series capacitors meet stringent industry standards, making them ideal for government and institutional procurement needs.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Mild Steel with Epoxy Finish | Welded Stainless Steel
Specifications Cap
2 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

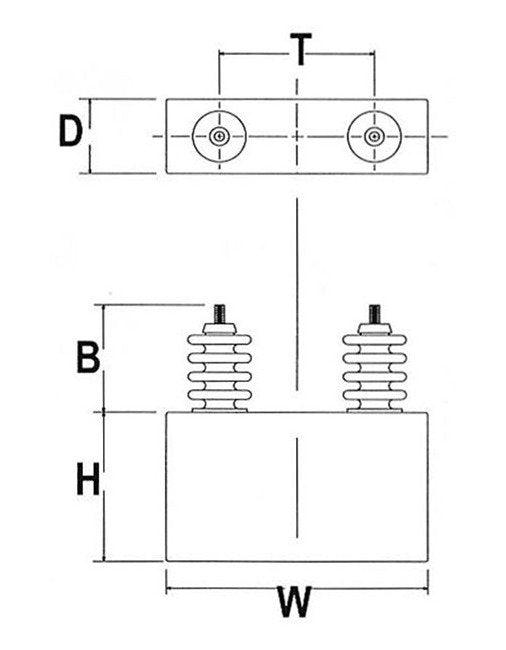

Specifications Dimension B
3 in
Specifications Dimension D
4.13 in
Specifications Dimension H
9 in
Specifications Dimension T
9.00 in
Specifications Dimension W
13.5 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
20000 V
