High Voltage Oil-Filled Capacitors - CC Series
High Voltage Oil-Filled Capacitors - CC Series
SKU:OIL-770191
Enhance your high-voltage systems with CC Series Oil-Filled Capacitors - reliable, high-performance components designed for precision and durability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CC Series
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CC Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

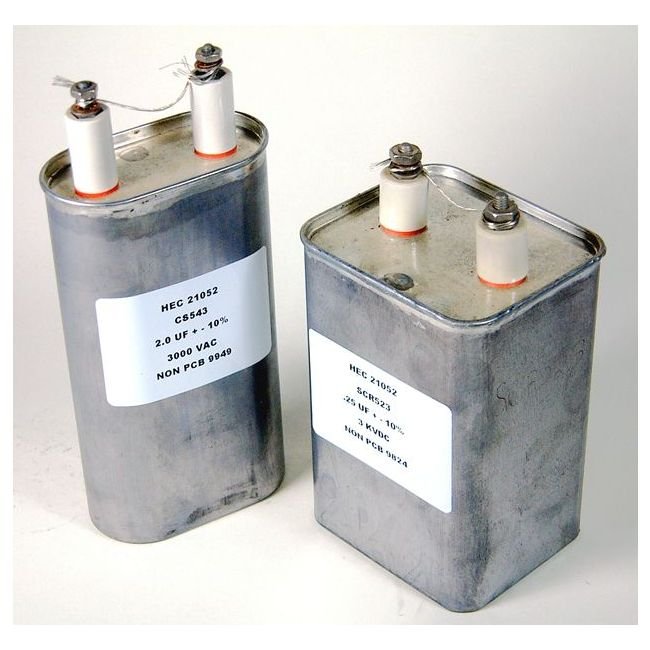

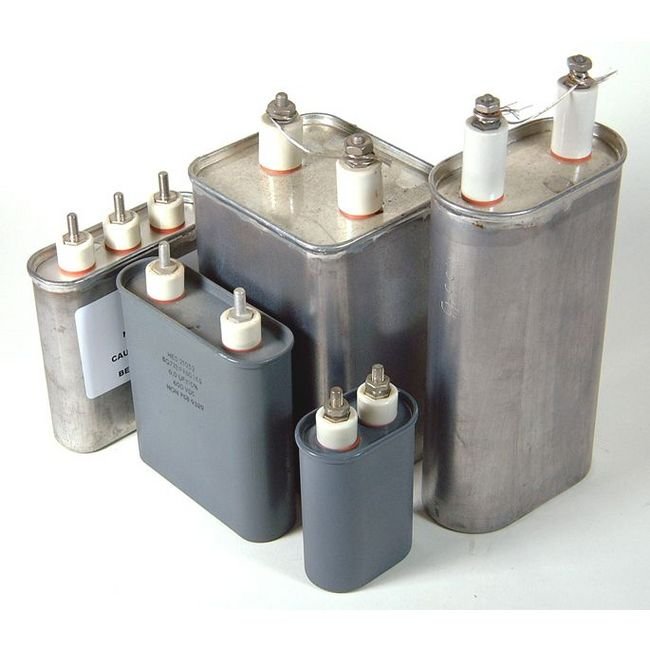

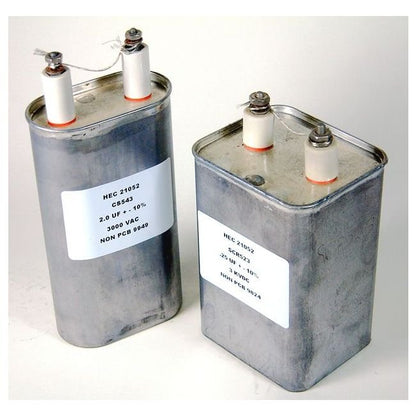

The CC Series Oil-Filled Capacitors are essential components for high-voltage applications, offering a capacitance range of 1 to 20 µF and voltage ratings between 2,000 to 10,000 VDC. Constructed with precision in mind, these capacitors feature plated drawn steel cans that ensure durability and reliability in diverse electrical environments. With a capacitance tolerance of ±10% and operating temperature ranging from -40 to +90 ºC, these capacitors guarantee optimal performance under varying conditions. Compliant with stringent industry standards, the CC Series capacitors provide high insulation resistance of 25000 MΩ and exceptional AC ripple voltage management, making them ideal for critical applications that demand efficiency and reliability.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
