High Voltage Oil-Filled Capacitors - CP Series
High Voltage Oil-Filled Capacitors - CP Series
SKU:OIL-c13c48
High Voltage Oil-Filled Capacitors - Reliable and durable capacitors for high voltage DC filtering applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CP Series
$129.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CP Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

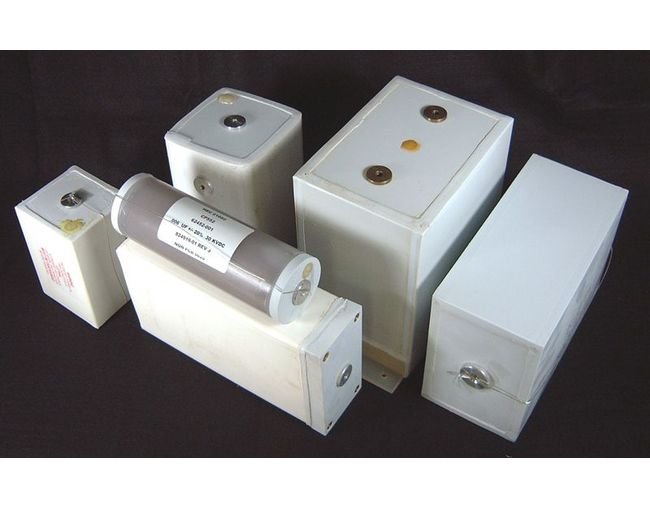

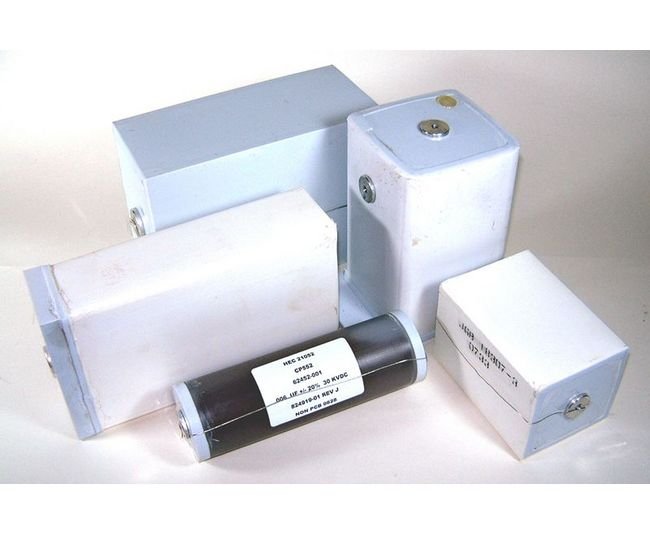

The CP Series Oil-Filled Capacitors are designed for high voltage applications, offering a capacitance range of 0.01 to 1 µF with a voltage rating of 40,000 VDC. Constructed with welded polypropylene cases and a dielectric combination of kraft paper and polypropylene, these capacitors ensure reliable performance even in extreme temperatures (-40 to +90 ºC). With a capacitance tolerance of ±10% and excellent insulation resistance of 25,000 MΩ, these capacitors are ideal for DC filtering applications. Meet stringent requirements with this environmentally compatible and durable solution.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.05 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

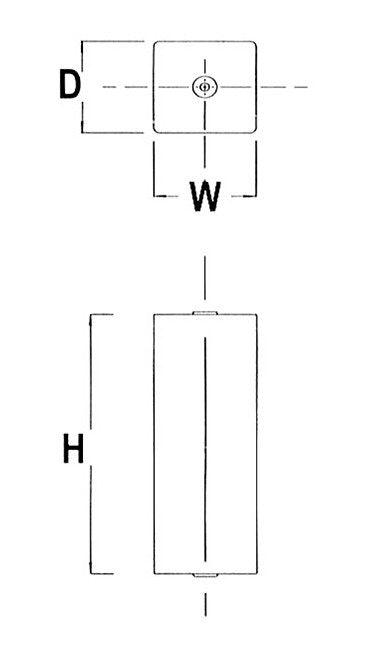

Specifications Dimension D
3.25
Specifications Dimension H
9
Specifications Dimension W
3.5
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
40000 V
