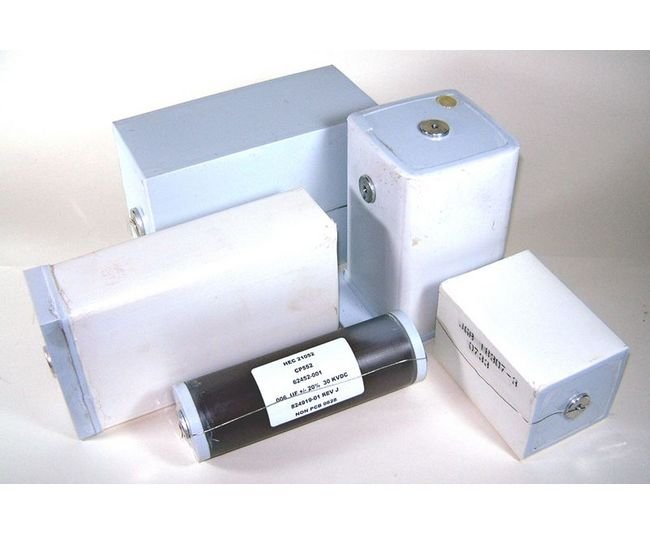

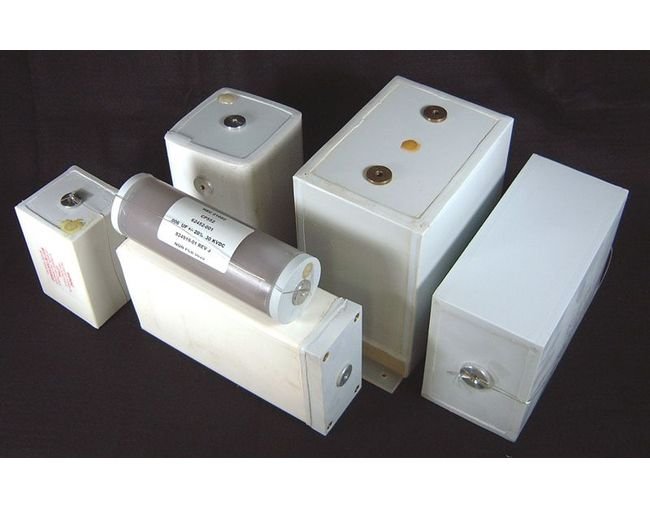

The CP Series Oil-Filled Capacitors boast a capacitance range of 0.01 to 1 µF, with a specific model featuring 0.2 µF capacitance and a voltage rating of 10000 VDC. These capacitors come in welded polypropylene cases, offering robust protection and durability for high voltage applications. With capacitance tolerance of ±10% and an operating temperature range of -40 to +90 ºC, they ensure reliable performance in challenging environments. Designed with Kraft paper and polypropylene dielectric and excellent insulation resistance, these capacitors are ideal for DC filter applications. Meet your voltage regulation needs with confidence and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.2 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

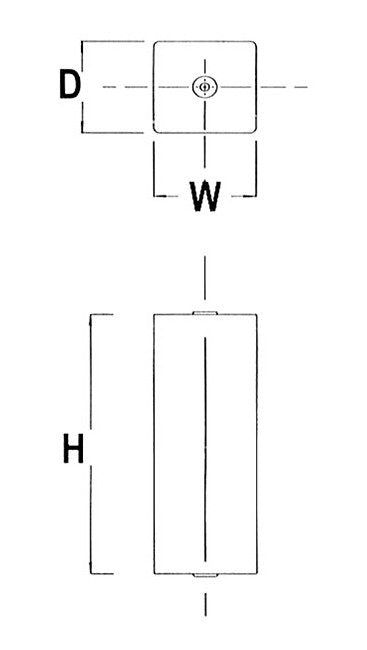

Specifications Dimension D
2.38
Specifications Dimension H
12
Specifications Dimension W
2.38
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
10000 V
