High Voltage Oil-Filled Capacitors - CP Series, 0.2 µF, 20000 V
High Voltage Oil-Filled Capacitors - CP Series, 0.2 µF, 20000 V
SKU:OIL-60662b
Enhance power systems with CP Series Oil-Filled Capacitors - 0.2 µF, 20000 V. Ensure reliability and efficiency.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CP Series, 0.2 µF, 20000 V
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CP Series, 0.2 µF, 20000 V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

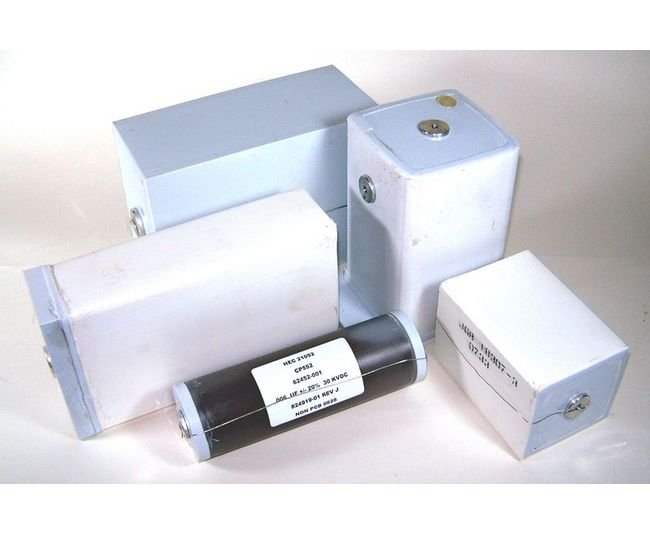

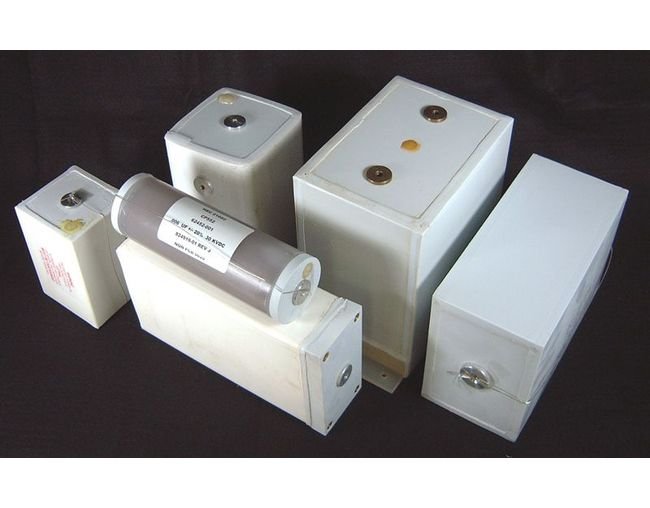

Upgrade your power systems with our CP Series Oil-Filled Capacitors. With a capacitance of 0.2 µF and voltage rating of 20000 VDC, these capacitors offer superior performance and reliability. Constructed with welded polypropylene cases and advanced dielectric materials, they ensure efficient power filtering and long-term durability. Operating in temperatures from -40 to +90 ºC, these capacitors meet stringent industry standards for insulation resistance, AC ripple voltage, and capacitance tolerance. Ideal for DC filtering applications, our CP Series capacitors guarantee optimal energy management and protection for your electronic equipment.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.2 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

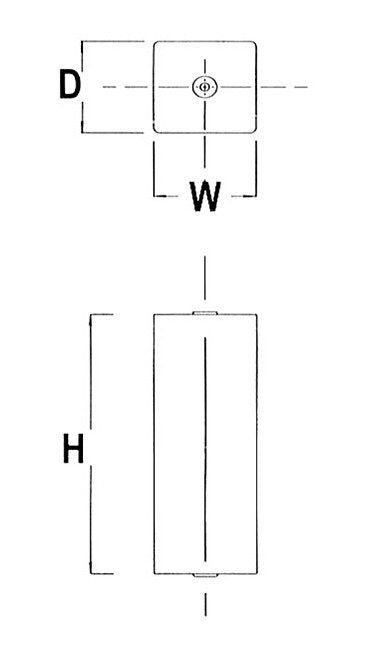

Specifications Dimension D
3.25
Specifications Dimension H
9
Specifications Dimension W
3.5
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
20000 V
