High Voltage Oil-Filled Capacitors - CP Series
High Voltage Oil-Filled Capacitors - CP Series
SKU:OIL-24a95a
Rugged CP Series Oil-Filled Capacitors for high voltage applications with 0.01 to 1 µF capacitance & up to 40,000 VDC. Welded polypropylene cases for reliability.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CP Series
$99.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CP Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

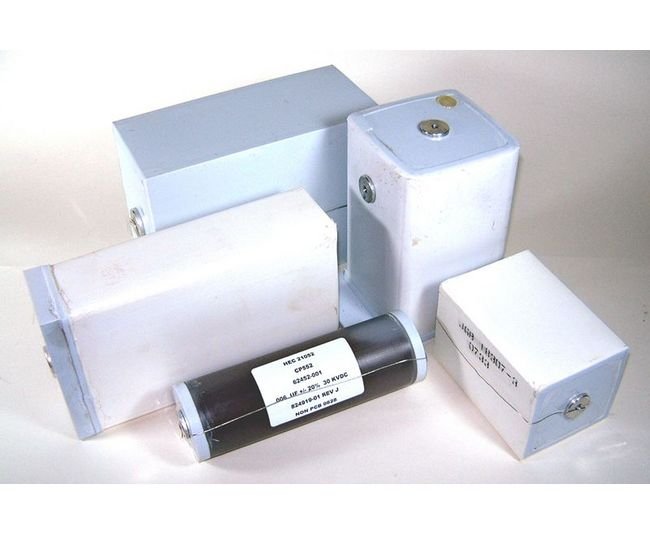

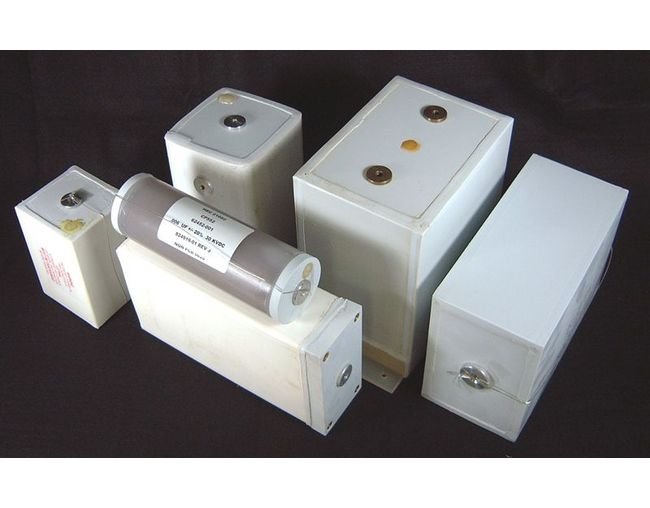

The CP Series Oil-Filled Capacitors are precision-engineered for demanding applications, offering a capacitance range of 0.01 to 1 µF and a robust voltage rating of up to 40,000 VDC. Constructed with welded polypropylene cases, these capacitors ensure reliable performance in extreme conditions with an operating temperature range of -40 to +90 ºC. With industry-standard insulation resistance and a dielectric made of kraft paper and polypropylene, these capacitors provide exceptional reliability and longevity. Ideal for DC filter applications, the CP Series meets stringent government and institutional procurement standards, making them a trusted choice for critical installations.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.25 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

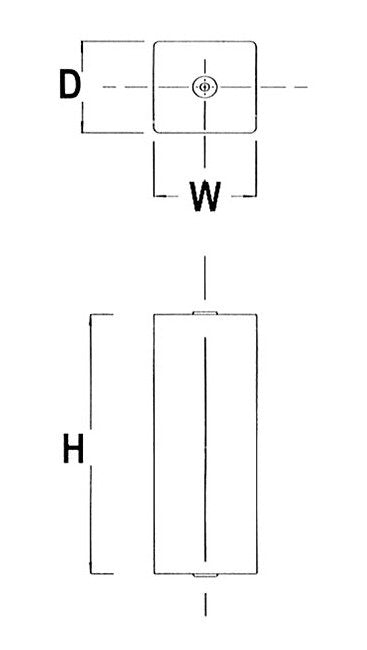

Specifications Dimension D
5.00
Specifications Dimension H
10
Specifications Dimension W
7.88
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
40000 V
