High Voltage Oil-Filled Capacitors - CP Series
High Voltage Oil-Filled Capacitors - CP Series
SKU:OIL-dafe19
Enhance your power system with reliable CP Series Oil-Filled Capacitors for high voltage applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CP Series
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CP Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

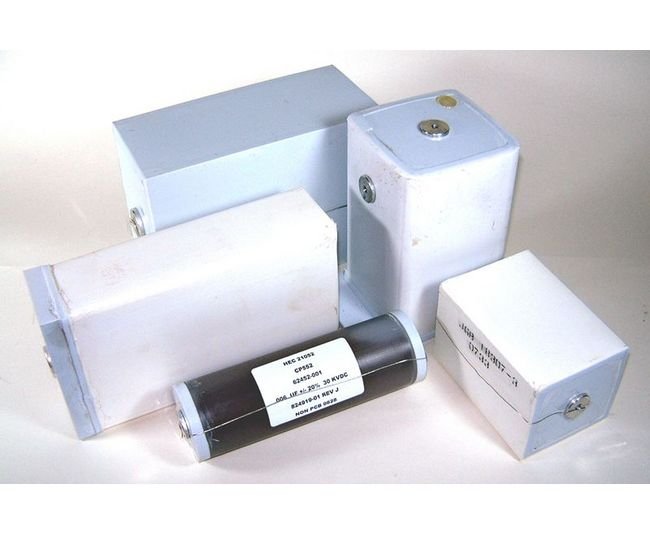

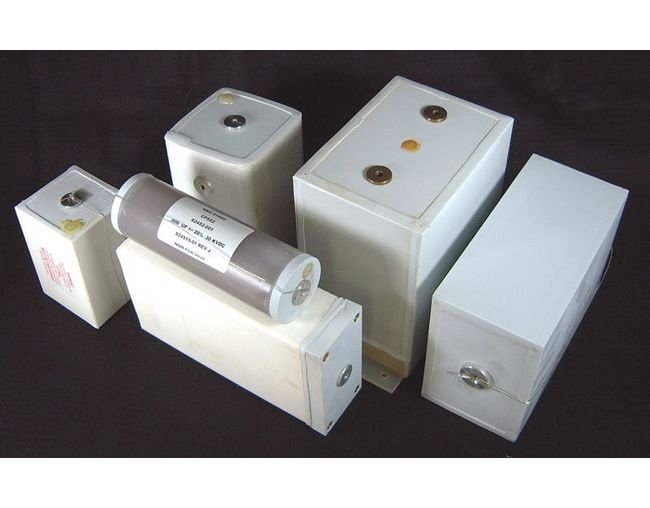

Upgrade your power system with our CP Series Oil-Filled Capacitors. With a capacitance range from 0.01 to 1 µF and a voltage rating of 40,000 VDC, these capacitors ensure reliable performance in demanding environments. Constructed with welded polypropylene cases and environmentally friendly dielectric, they offer superior insulation resistance and operate efficiently in temperatures ranging from -40 to +90 ºC. Meet stringent institutional standards with our AC ripple voltage protection features, making our capacitors ideal for critical applications.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.025 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

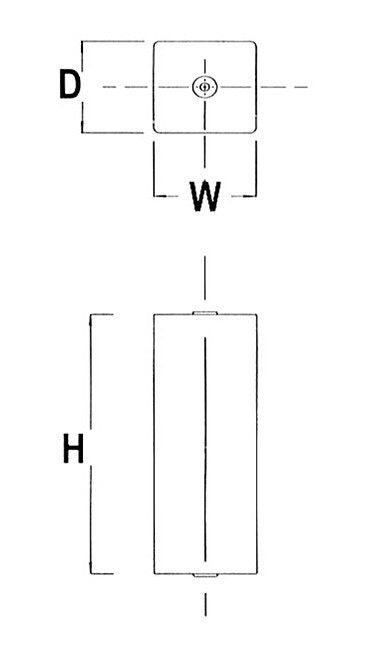

Specifications Dimension D
3.25
Specifications Dimension H
8
Specifications Dimension W
3.5
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
40000 V
