High Voltage Oil-Filled Capacitors - CP Series
High Voltage Oil-Filled Capacitors - CP Series
SKU:OIL-cff83d
Reliable high-voltage capacitors for DC filter applications, 10k - 100k VDC, 0.01 to 1 µF capacitance, welded polypropylene cases.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CP Series
$89.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CP Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

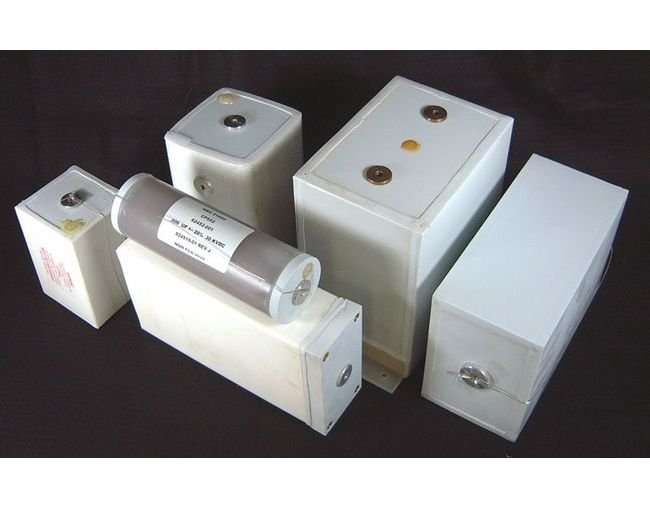

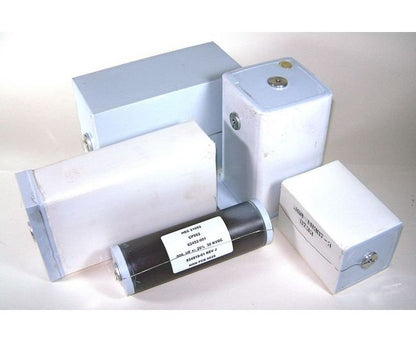

The CP Series Oil-Filled Capacitors are designed for high-voltage applications ranging from 10,000 to 100,000 VDC. With a capacitance range of 0.01 to 1 µF and a capacitance tolerance of ±10%, these capacitors ensure reliable performance in demanding environments. Constructed with welded polypropylene cases and utilizing a dielectric of kraft paper and polypropylene, these capacitors offer excellent insulation resistance, withstanding temperatures from -40 to +90 ºC. The AC ripple voltage specifications ensure stable operation under varying voltages. Ideal for DC filter applications, these capacitors meet the stringent requirements of government and institutional procurement standards.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
1 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

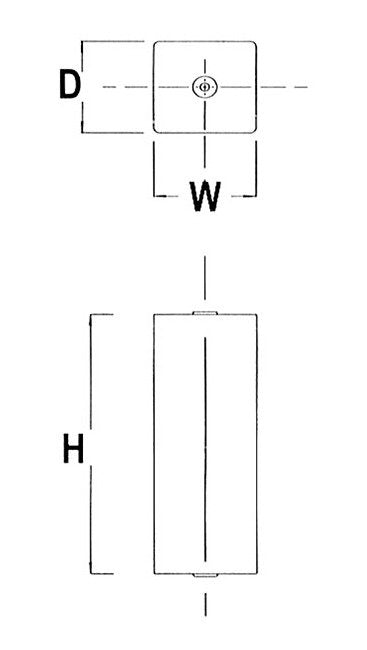

Specifications Dimension D
4.25
Specifications Dimension H
8
Specifications Dimension W
4.25
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
10000 V
