High Voltage Oil-Filled Capacitors - CP Series
High Voltage Oil-Filled Capacitors - CP Series
SKU:OIL-8a6324
Reliable CP Series Oil-Filled High Voltage Capacitors for demanding applications. Capacitance range: 0.01 to 1 µF, Voltage: up to 100,000 VDC. Durable welded polypropylene cases.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CP Series
$129.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CP Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

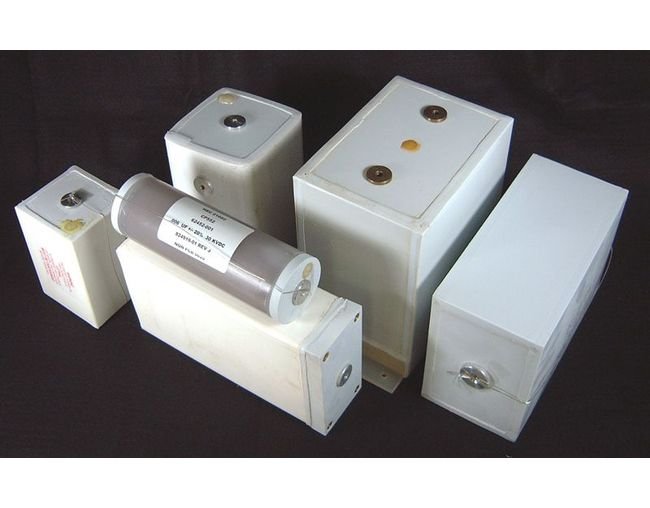

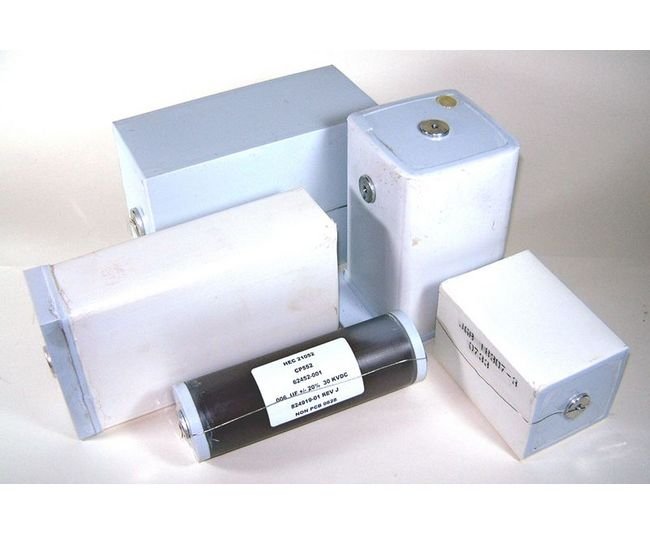

The CP Series Oil-Filled Capacitors are essential DC Filter capacitors designed for demanding applications. With a capacitance range of 0.01 to 1 µF and a voltage rating up to 100,000 VDC, these capacitors deliver reliable performance in high-voltage environments. Featuring welded polypropylene cases for enhanced durability, these capacitors ensure stable operation under extreme conditions. The dielectric materials, including kraft paper and polypropylene with eco-friendly impregnant, contribute to superior insulation resistance and efficiency. Compliant with industry standards, these capacitors offer precision and reliability for a wide range of industrial and institutional applications.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.01 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

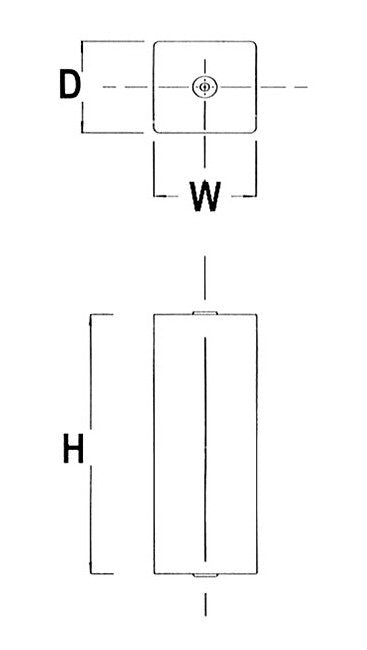

Specifications Dimension D
3.25
Specifications Dimension H
15
Specifications Dimension W
3.5
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
100000 V
