High Voltage Oil-Filled Capacitors - CP Series

Name: High Voltage Oil-Filled Capacitors - CP Series
Brand: High Energy Corp.
SKU: OIL-9da903
Price: 59.99 USD
Availability: OutOfStock

SKU:OIL-9da903

Precision-engineered high-voltage capacitors for reliable performance in demanding environments.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

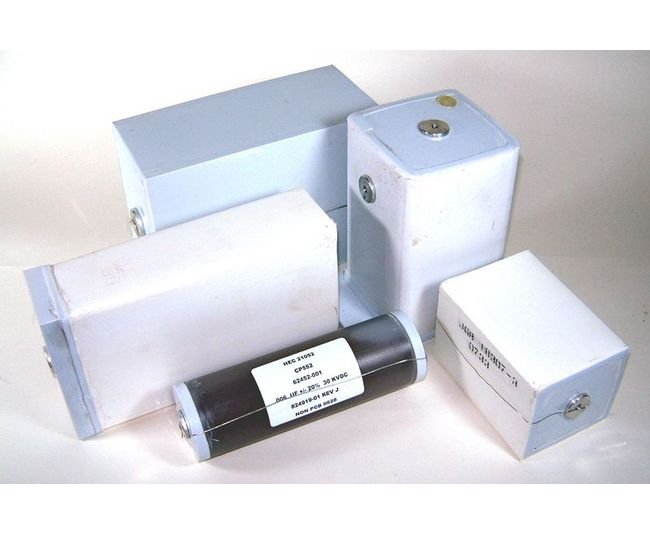

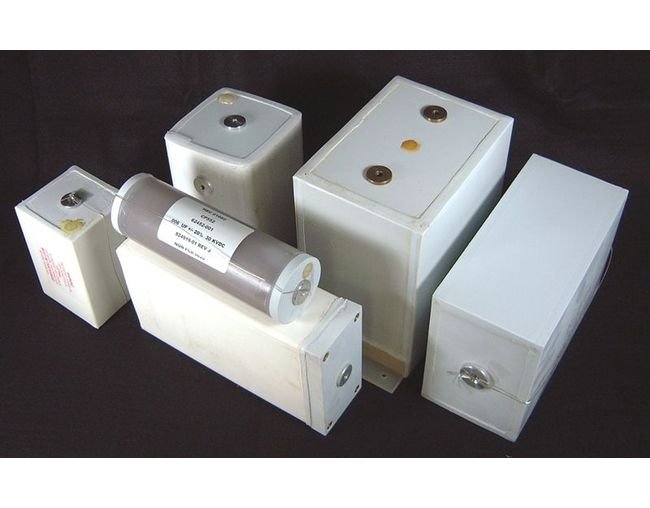

The CP Series Oil-Filled Capacitors are precision-engineered for exceptional performance in high-voltage applications. With a capacitance range of 0.01 to 1 µF and a voltage rating of 75,000 VDC, these capacitors ensure reliable operation in demanding environments. Featuring welded polypropylene cases and environmentally compatible dielectric, they offer superior durability and efficiency. Operating at temperatures from -40 to +90 ºC, these capacitors guarantee optimal functionality with insulation resistance of 25,000 MΩ. Compliant with industry standards, they provide reliable DC filtering and AC ripple protection, making them ideal for government and institutional procurement needs.

Product Specifications

Specifications Ac Ripple Voltage

The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz

Specifications Cap

0.05 µF

Specifications Capacitance Range

0.01 to 1 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Case Construction

Welded Polypropylene Plastic

Specifications Dielectric

Kraft paper and polypropylene with environmentally compatible impregnant

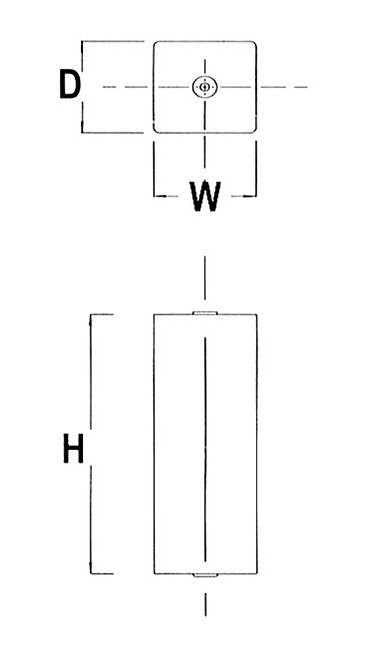

Specifications Dimension D

4.50

Specifications Dimension H

Specifications Dimension W

4.63

Specifications Insulation Resistance At 25c Typical

25000 MΩ

Specifications Operating Temperature

-40 to +90 ºC

Specifications Voltage Dc

75000 V
