High Voltage Oil-Filled Capacitors - CP Series
High Voltage Oil-Filled Capacitors - CP Series
SKU:OIL-91654e
Enhance electrical systems with CP Series High Voltage Oil-Filled Capacitors. Capacitance range 0.01-1 µF, Voltage up to 20000 VDC, Welded Polypropylene cases. Ideal for institutional use.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CP Series
$99.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CP Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

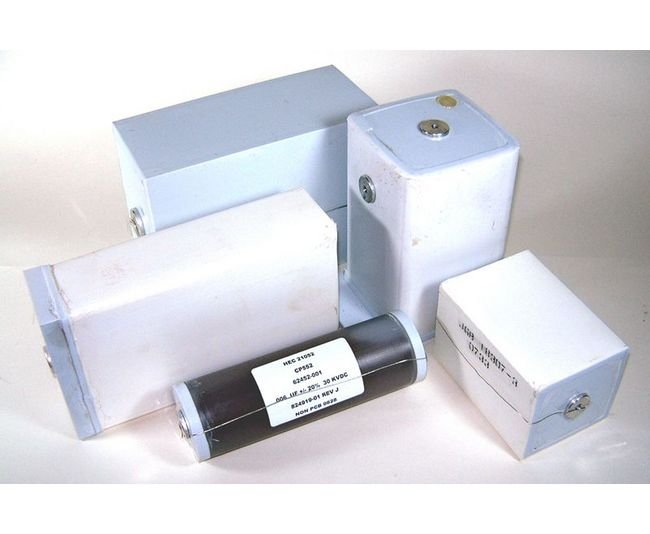

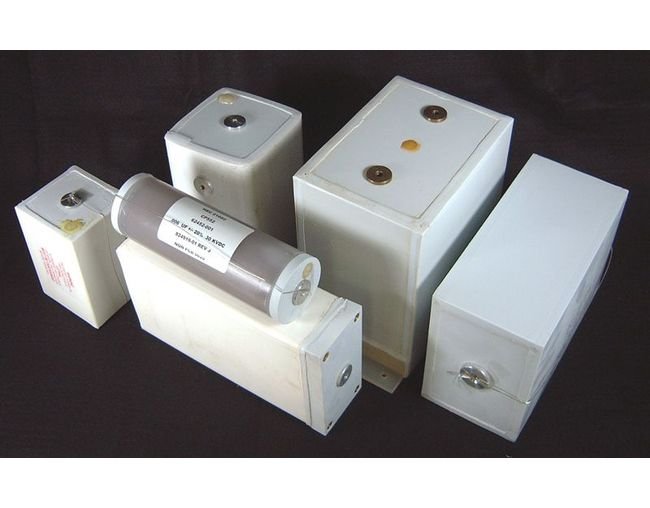

Enhance your electrical systems with the CP Series Oil-Filled Capacitors. With a capacitance range of 0.01 to 1 µF and a voltage rating of up to 20000 VDC, these capacitors are designed for high performance and reliability. Built with welded polypropylene cases, they ensure durability and safety in demanding environments. The capacitors also feature a temperature range of -40 to +90 ºC, providing stable operation across varying conditions. Ideal for DC filter applications, the CP Series guarantees optimal performance and efficiency in industrial settings, meeting stringent quality standards for institutional procurement.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.1 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

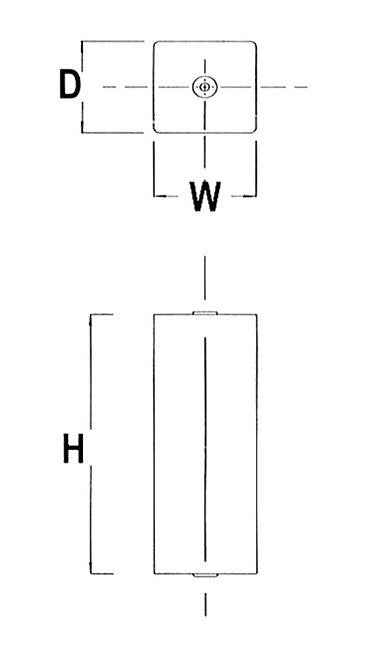

Specifications Dimension D
3.25
Specifications Dimension H
6
Specifications Dimension W
3.5
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
20000 V
