High-Voltage Oil-Filled Capacitors - CP Series
High-Voltage Oil-Filled Capacitors - CP Series
SKU:OIL-92e7f1
High-voltage oil-filled capacitors with 0.01 to 1 µF capacitance and up to 100,000 VDC for reliable DC filtering in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Voltage Oil-Filled Capacitors - CP Series
$89.99
Quantity: 1
Claim Your Seller Account
High-Voltage Oil-Filled Capacitors - CP Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

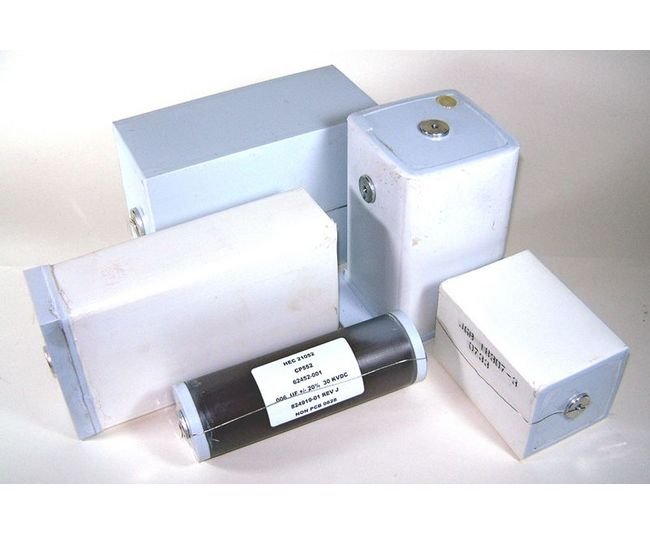

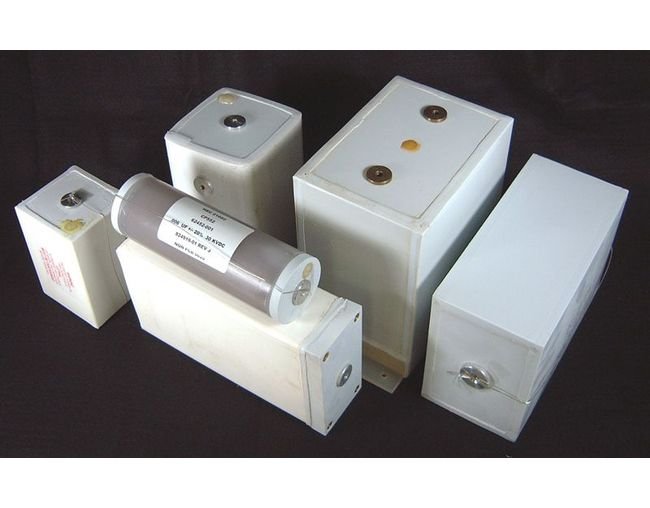

The CP Series Oil-Filled Capacitors offer reliable DC filtering with a capacitance range of 0.01 to 1 µF and a high voltage capacity up to 100,000 VDC. These capacitors feature welded polypropylene cases for durability and are designed with Kraft paper and polypropylene dielectric for enhanced performance. With an operating temperature range of -40 to +90 ºC and exceptional insulation resistance of 25000 MΩ, they ensure stable and efficient operation in challenging environments. Adhering to stringent quality standards, these capacitors provide optimal AC ripple voltage control, making them ideal for industrial applications requiring precision and reliability.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.05 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

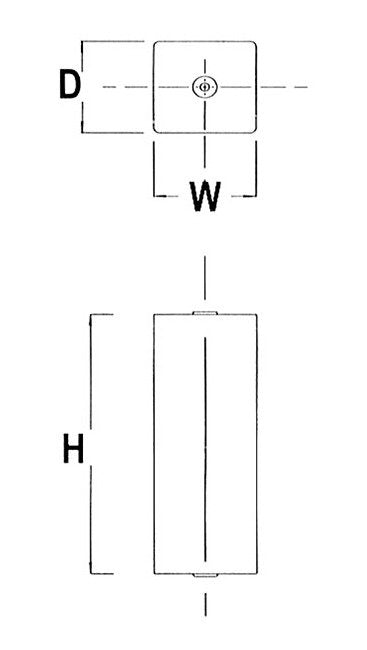

Specifications Dimension D
4.5
Specifications Dimension H
22
Specifications Dimension W
4.63
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
100000 V
