High Voltage Oil-Filled Capacitors - CP Series
High Voltage Oil-Filled Capacitors - CP Series
SKU:OIL-a2018d
Enhance power systems with CP Series Oil-Filled Capacitors. Reliable, high voltage performance for demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - CP Series
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - CP Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

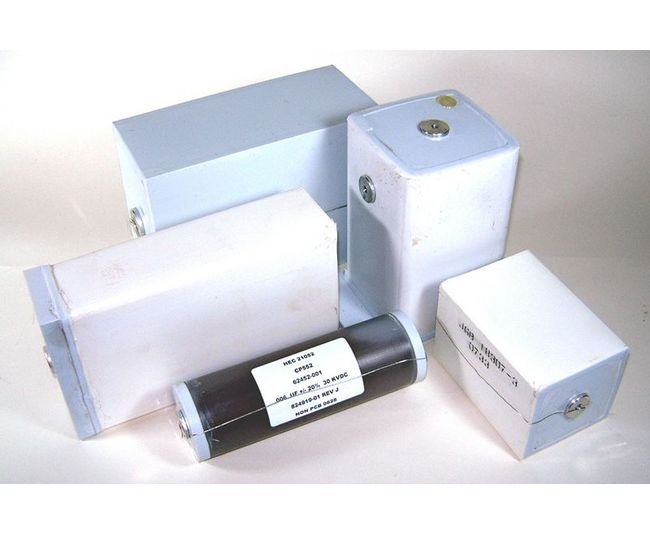

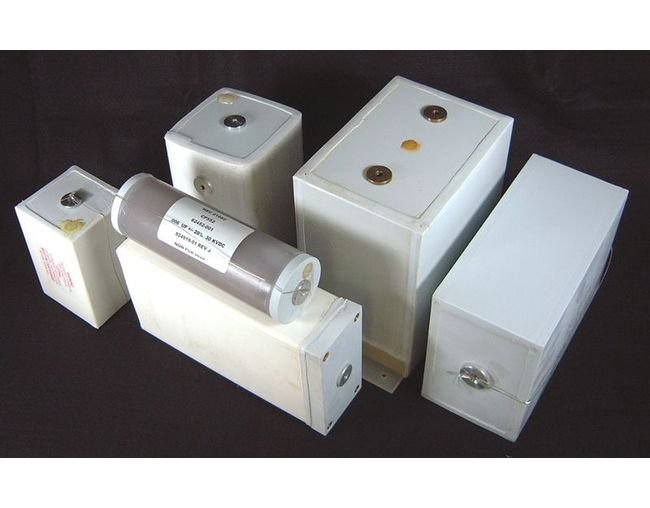

Upgrade your power systems with our CP Series Oil-Filled Capacitors. Featuring a capacitance range of 0.01 to 1 µF and a rugged welded polypropylene case, these capacitors are designed to withstand voltages ranging from 10,000 to 100,000 VDC. With a capacitance tolerance of ±10% standard, excellent insulation resistance of 25,000 MΩ, and operating temperature of -40 to +90 ºC, these capacitors ensure reliable performance in demanding environments. Compliant with federal procurement standards and industry-specific certifications, trust our CP Series for your high voltage applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.01 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

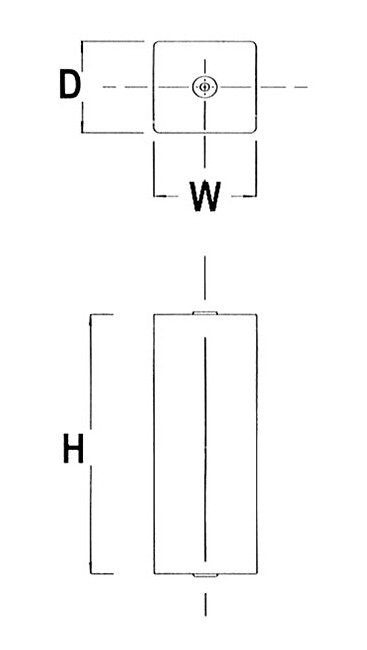

Specifications Dimension D
2.38
Specifications Dimension H
18
Specifications Dimension W
2.38
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
75000 V
