High Voltage Oil-Filled Capacitors - LC Series
High Voltage Oil-Filled Capacitors - LC Series
SKU:OIL-794228
High voltage oil-filled capacitors with 1-20 µF capacitance, 10,000 VDC, and durable construction for reliable performance in high-voltage applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - LC Series
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - LC Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The LC Series Oil-Filled Capacitors offer a capacitance range of 1 to 20 µF with a voltage rating of 10,000 VDC. These capacitors feature welded rectangular cans for durability and reliability in high-voltage applications. Built with Kraft paper and polypropylene dielectric materials, along with environmentally compatible impregnant, they ensure exceptional insulation resistance and performance even in demanding environments. With compliance to stringent standards and precise specifications, the LC Series is ideal for critical power systems and industrial applications.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Mild Steel with Epoxy Finish | Welded Stainless Steel
Specifications Cap
5 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

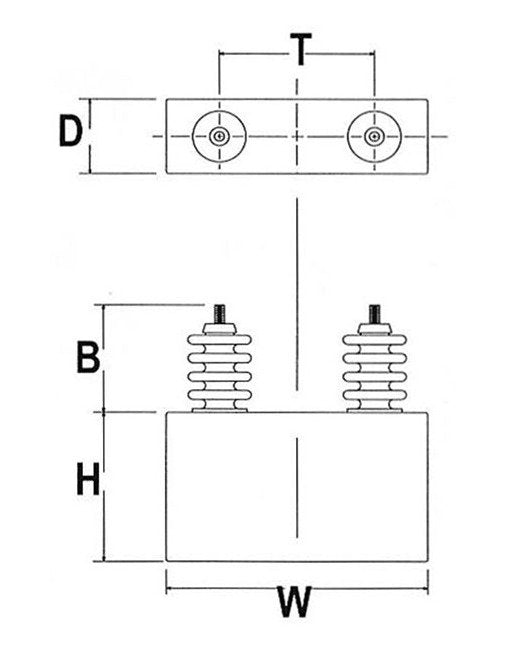

Specifications Dimension B
3 in
Specifications Dimension D
4.0 in
Specifications Dimension H
10 in
Specifications Dimension T
5.00 in
Specifications Dimension W
8.0 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
10000 V
