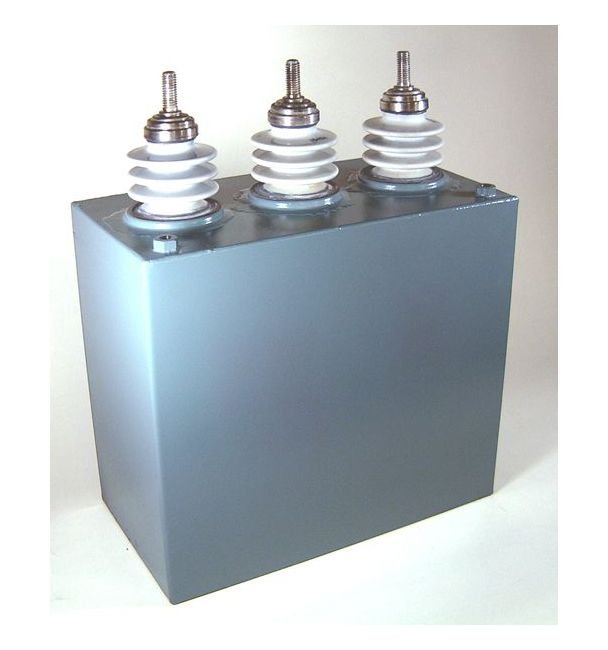

High Voltage Oil-Filled Capacitors - LC Series
High Voltage Oil-Filled Capacitors - LC Series
SKU:OIL-30527d
High-performance oil-filled capacitors for high voltage applications, with capacitance range 1-20 µF and voltage rating up to 40,000 VDC.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - LC Series
$349.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - LC Series
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The LC Series Oil-Filled Capacitors are essential components for high-voltage applications, offering a capacitance range from 1 to 20 µF with a voltage rating of up to 40,000 VDC. Constructed with welded rectangular cans and featuring dimensions of 6.25" D x 13.5" W x 24" H, these capacitors ensure reliable performance in a variety of settings. With capacitance tolerance of ±10%, operating temperature ranging from -40 to +90 ºC, and high insulation resistance at 25ºC, these capacitors meet stringent industry standards for quality and durability.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Mild Steel with Epoxy Finish | Welded Stainless Steel
Specifications Cap
4 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

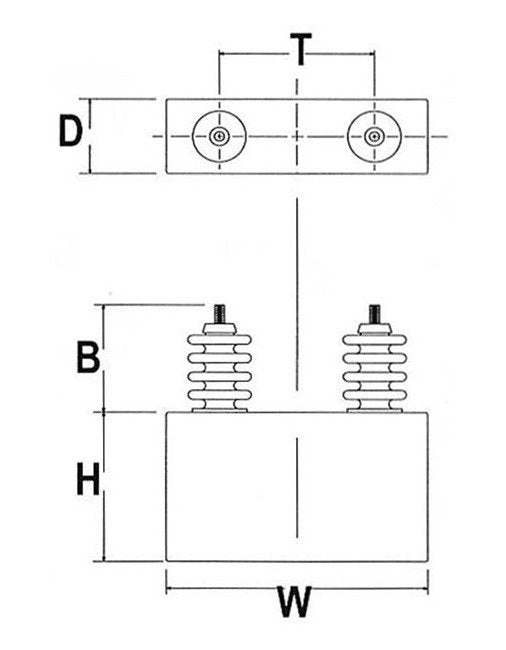

Specifications Dimension B
5 in
Specifications Dimension D
6.25 in
Specifications Dimension H
24 in
Specifications Dimension T
9.00 in
Specifications Dimension W
13.5 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
40000 V
