High Voltage Oil-Filled Capacitors - LC Series
High Voltage Oil-Filled Capacitors - LC Series
SKU:OIL-7ca2a8
High Voltage Oil-Filled Capacitors - Reliable performance for high-voltage applications. Capacitance range: 1-20 µF. Voltage: 10,000-100,000 VDC. Robust design with welded construction.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Voltage Oil-Filled Capacitors - LC Series
$129.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled Capacitors - LC Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

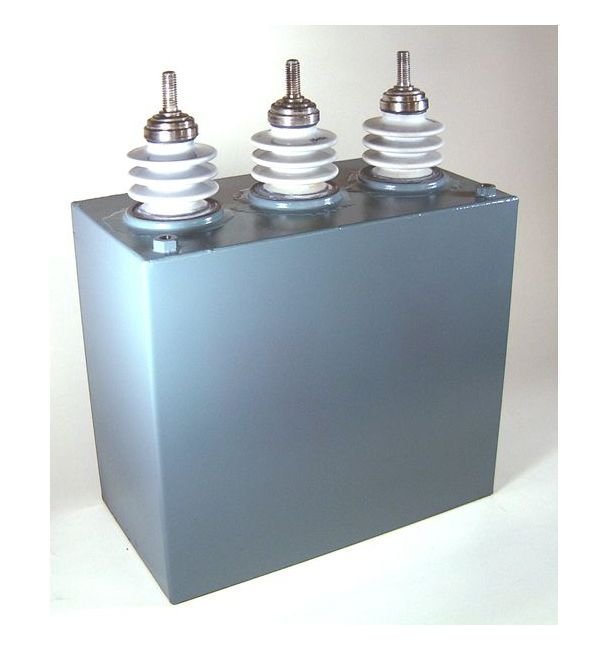

The LC Series Oil-Filled Capacitors offer a capacitance range of 1 to 20 µF and voltage ratings from 10,000 to 100,000 VDC. Constructed with welded rectangular cans and featuring a robust design, these capacitors ensure reliable performance in high-voltage applications. With dimensions of 6.25 x 13.5 x 22 inches and excellent insulation resistance of 25000 MΩ, they are ideal for demanding environments. The can construction includes mild steel with an epoxy finish and welded stainless steel, providing durability. Compliant with stringent standards, these capacitors are suited for government, military, and industrial use where high performance and reliability are paramount.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz

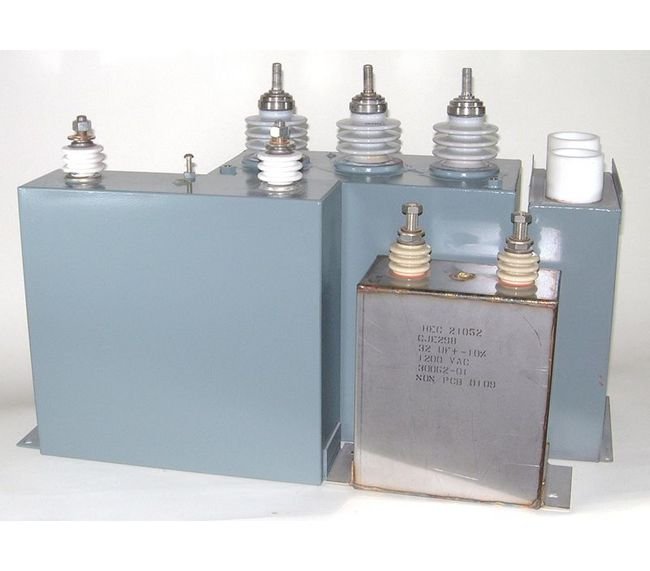

Specifications Can Construction
Mild Steel with Epoxy Finish | Welded Stainless Steel
Specifications Cap
10 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

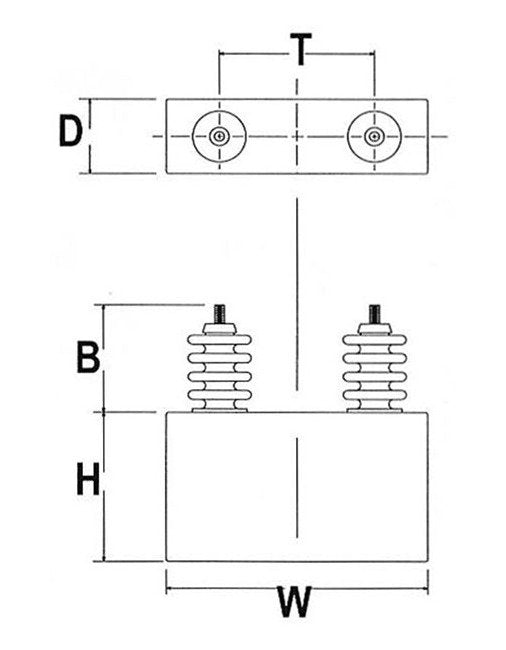

Specifications Dimension B
3 in
Specifications Dimension D
6.25 in
Specifications Dimension H
22 in
Specifications Dimension T
9.00 in
Specifications Dimension W
13.5 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
20000 V
