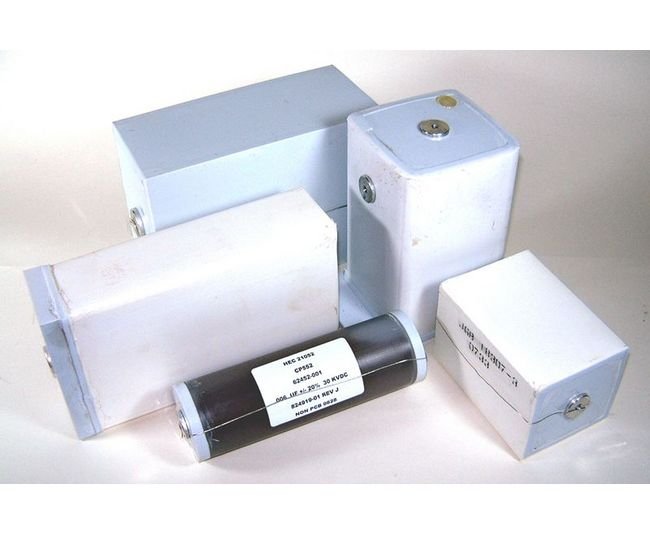

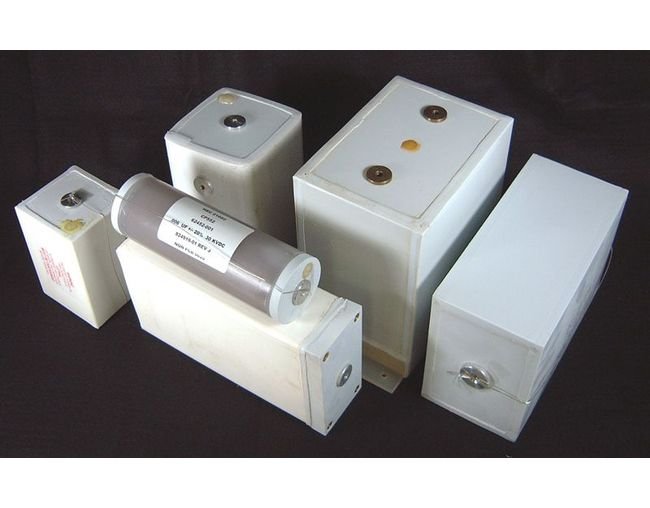

High Voltage Oil-Filled CP Series Capacitors
High Voltage Oil-Filled CP Series Capacitors
SKU:OIL-772b19
Highly reliable CP Series Oil-Filled Capacitors for 10,000 VDC applications with 0.01 to 1 µF capacitance range. Durable welded polypropylene construction.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Oil-Filled CP Series Capacitors
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled CP Series Capacitors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CP Series Oil-Filled Capacitors are expertly crafted for demanding applications, offering a capacitance range of 0.01 to 1 µF with a voltage rating of up to 10,000 VDC. Encased in welded polypropylene for enhanced durability, these capacitors ensure reliable performance in extreme conditions. With a capacitance tolerance of ±10% and an operational temperature range of -40 to +90 ºC, they excel in DC filtering applications, providing excellent insulation resistance and minimal AC ripple voltage. Trust the CP Series for superior quality and longevity in high-voltage environments.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.5 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

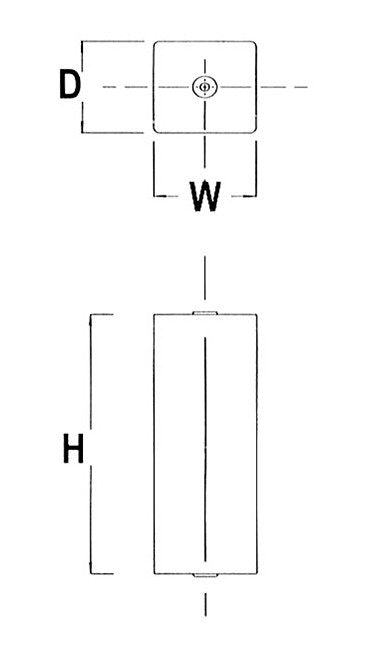

Specifications Dimension D
3.25
Specifications Dimension H
8
Specifications Dimension W
3.50
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
10000 V
