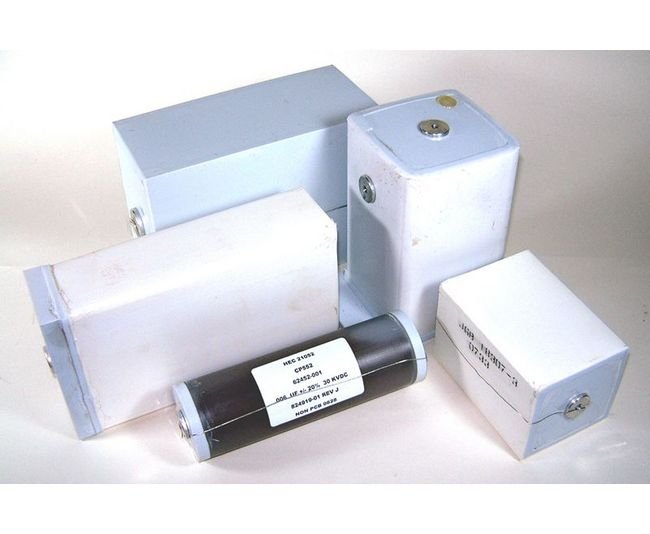

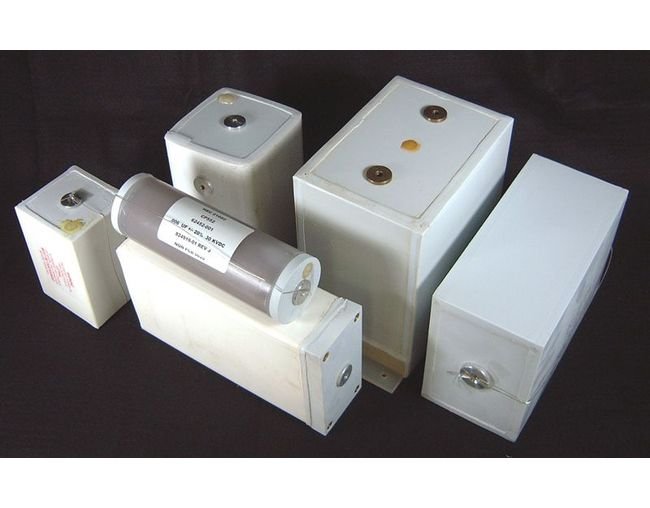

High Voltage Oil-Filled CP Series Capacitors
High Voltage Oil-Filled CP Series Capacitors
SKU:OIL-d51445
Enhance power systems with high-performance Oil-Filled Capacitors from the CP Series. Reliable, durable, and compliant with industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Oil-Filled CP Series Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Oil-Filled CP Series Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power systems with our CP Series Oil-Filled Capacitors. Offering a capacitance range of 0.01 to 1 µF and a voltage range of up to 40,000 VDC, these capacitors ensure reliable performance in demanding environments. Built with welded polypropylene cases and meeting stringent industry standards, our capacitors provide exceptional insulation resistance and temperature tolerance from -40 to +90 ºC.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
0.01 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

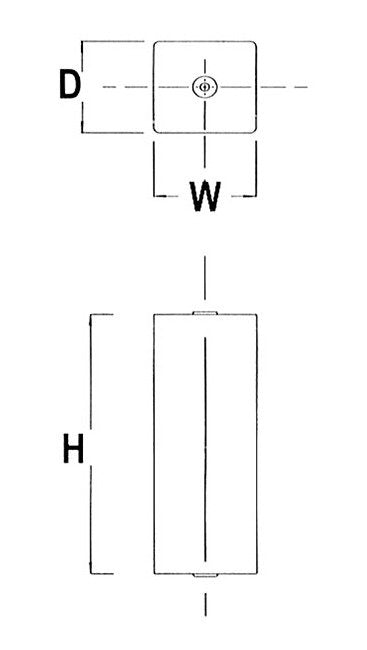

Specifications Dimension D
2.38
Specifications Dimension H
8
Specifications Dimension W
2.38
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
40000 V
