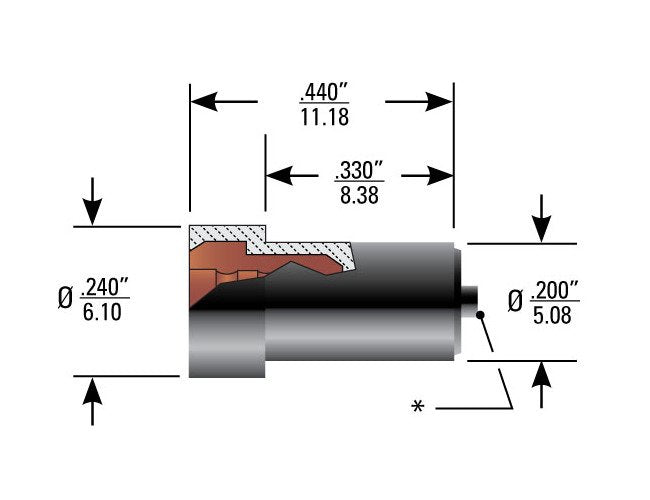

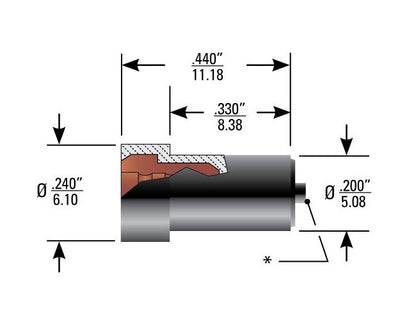

The High Voltage Panel Connector from the PeeWee Series is designed for high voltage applications requiring compact sizes. Utilizing Teledyne Reynold's Advanced Interface™ technology, this non-sealed receptacle can handle up to 12 kVDC at 70,000 feet and temperatures ranging from -55°C to 125°C. With a push-pull coupling style and front mount panel design, it ensures secure and efficient connectivity. The connector is RoHS compliant and offers a current rating of 1.6 Amp, making it ideal for lasers, photomultipliers, power supplies, and TWT applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series plug assemblies.
Specifications Mounting
.243" (6.17 mm) diameter hole
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front Mount
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
