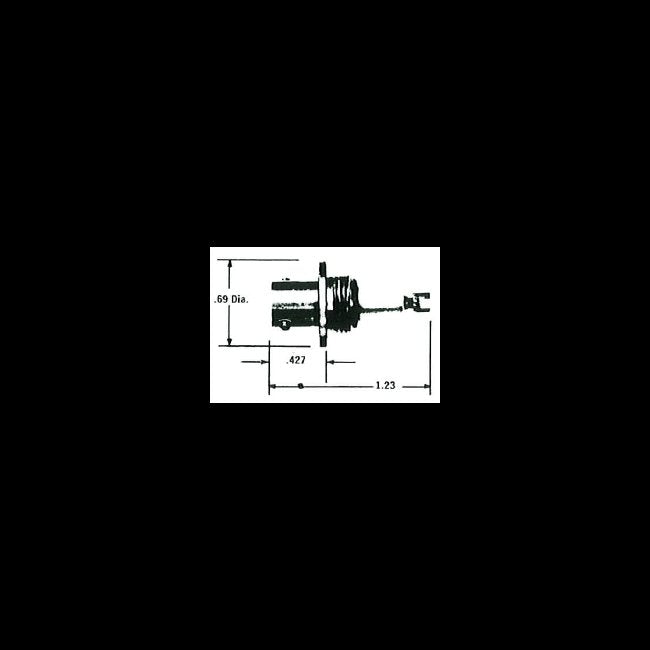

High Voltage Panel Connector (Threaded Panel) - Series 31/311
High Voltage Panel Connector (Threaded Panel) - Series 31/311
SKU:HIG-a14cf2
Reliable High Voltage Panel Connector (Threaded Panel) for industrial applications. Bayonet coupling, brass construction, 10 Amp, -40 to 85°C.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Panel Connector (Threaded Panel) - Series 31/311
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Panel Connector (Threaded Panel) - Series 31/311
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Panel Connector (Threaded Panel) from Series 31/311 offers a reliable solution for high voltage applications. With a current rating of 10 Amp and an operating temperature range of -40 to 85°C, this connector is designed to meet the demands of industrial settings. Featuring a bayonet coupling style and brass construction, it ensures secure connections and durability. The threaded panel mounting with a 1/2-28 UNEF thread provides ease of installation. This non-standard part is poised to excel in demanding environments where quality and performance are paramount.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Material
Brass
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all Series 311 Cond. 1 receptacles and adaptors.
Specifications Mounting Notes
Panel Thread to be 1/2-28 UNEF
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
31
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
7.5 kVDC for 30 sec.
Specifications Voltage Rating
6.5 kVDC
