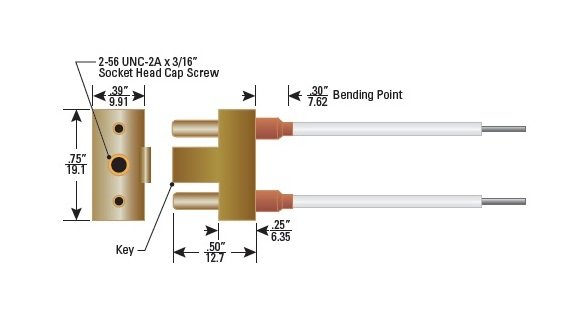

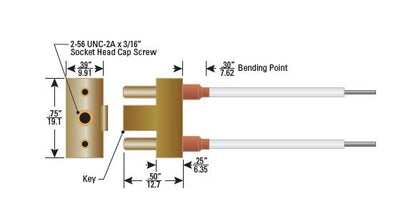

High-Voltage Pee-Wee Series 8 Pin Cable Assembly
High-Voltage Pee-Wee Series 8 Pin Cable Assembly
SKU:HIG-60f1cb
Reliable high-voltage Pee-Wee Series 8 Pin Cable Assembly for demanding applications. 12 kVDC, 70,000 ft altitude rating, and -55 to 125 °C operating temperature.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Voltage Pee-Wee Series 8 Pin Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
High-Voltage Pee-Wee Series 8 Pin Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliable high-voltage connections with our Pee-Wee Series 8 Pin Cable Assembly, designed for dense electronic packaging in high voltage applications. With a voltage rating of 12 kVDC and altitude rating of 70,000 ft, this cable assembly provides a secure connection under extreme conditions. The Advanced Interface⢠sealing method by Teledyne Reynold ensures efficiency at a temperature range of -55 °C to 125 °C. Constructed with quality materials like FEP wire insulation and brass contacts with a gold finish, this cable assembly meets the demands of lasers, power supplies, photomultipliers, and TWT applications.
Product Specifications
Application 0
LasersPower SuppliesPhotomultipliersTWT
Contact Properties Contact Design
Molded in Place, Spherical Radius
Contact Properties Contact Diameter
0.030
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Size
22 AWG
Contact Properties Contact Type
Male
Coupling Nut Properties Coupling Nut Finish
Nickel Plated
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded or Jack Screw
Specifications Current Rating
5 A
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates with Pee-Wee series 8 pin receptacle and 8 pin receptacle cable assemblies.
Specifications Number Of Contacts
8
Specifications Operating Temperature
-55 to 125 ºC
Specifications Sealed Receptacle
No
Specifications Series
PeeWee
Specifications Soldering Bucket
Accommodates 22 AWG max.
Specifications Standardnon Standard
Nonstandard Part
Specifications Test Voltage At 70000 Ft
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Diameter
0.050 in
Specifications Wire Insulation
FEP
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Operating Voltage
18 kVDC
