High Voltage Plug Cable Assembly - PeeWee Series
High Voltage Plug Cable Assembly - PeeWee Series
SKU:HIG-29c307
High-voltage, double-ended plug cable assembly from the PeeWee series; rated at 12 kVDC, ideal for dense electronic packaging.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Voltage Plug Cable Assembly - PeeWee Series
$89.99
Quantity: 1
Claim Your Seller Account
High Voltage Plug Cable Assembly - PeeWee Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

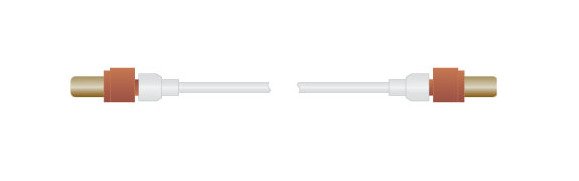

The High Voltage Plug Cable Assembly from the PeeWee Series is a subminiature connector designed for high voltage applications in compact spaces. Utilizing Teledyne Reynold's patented Advanced Interface™ technology, this double-ended assembly is rated at 12 kVDC at altitudes up to 70,000ft with a temperature range of -55°C to 125°C. With push-pull coupling and compatibility with all non-threaded Pee-Wee series receptacles, this assembly ensures secure and reliable connections in challenging environments.
Product Specifications
Application 0
LasersPhotomultipliersTWTPower Supplies
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series receptacles and receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP
Specifications Wire Pn
178-8066
