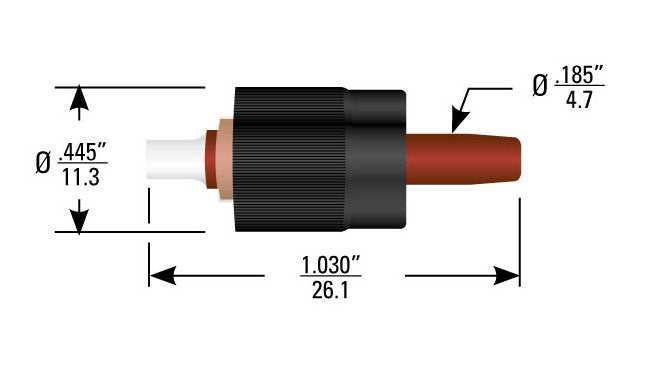

High Voltage Plug Kit - Series 730 Plastic Coupling Nut
High Voltage Plug Kit - Series 730 Plastic Coupling Nut
SKU:HIG-0c6e17
Reliable high voltage plug kit with plastic coupling nut for 10-25 kVDC applications. Threaded coupling style, fluorosilicone insulator material, and 4-6 Amp current rating.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Plug Kit - Series 730 Plastic Coupling Nut
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Plug Kit - Series 730 Plastic Coupling Nut
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 730 Plug Kit Plastic Coupling Nut is a high-performance solution designed for 10-25 kVDC applications. Featuring a threaded coupling style and fluorosilicone insulator material, this plug assembly ensures reliable connections in challenging environments. With a current rating of 4-6 Amp and compatibility with various receptacles, including LGH™ 1/2I series and Reynolds C730 series, this standard part meets stringent operational requirements. Accommodating wire diameters of 0.080 in | 2.03 mm, the plug kit offers secure and efficient connections for high voltage applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Fluorosilicone
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all series 730 & 830 receptacles and LGH 1/2I series receptacles. Also mates Reynolds C730 series RC1505,2RC1505 and 3RC1505 receptacles.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
FEP
Wire Properties Accomodates Wire Diameter
0.080 in | 2.03 mm
