High Voltage Receptacle Series C 737
High Voltage Receptacle Series C 737
SKU:HIG-c9f917
Cutting-edge high voltage receptacle for secure and reliable connections, featuring a 10 A current rating and 18 kVDC test voltage. Threaded coupling style with sealed design for safety.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Receptacle Series C 737
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Receptacle Series C 737
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Receptacle Series C 737 is a cutting-edge solution designed for installations requiring reliable high-voltage connections. With a current rating of 10 A and an operating temperature range of -55 to 95 °C, this non-standard receptacle boasts a test voltage of 18 kVDC, ensuring exceptional performance under demanding conditions. The threaded coupling style and sealed design provide secure connections, while the insulator material ensures safety. Compatible with LGH™ 1/2I, this receptacle meets the highest industry standards for voltage rating and altitude pressure, making it ideal for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

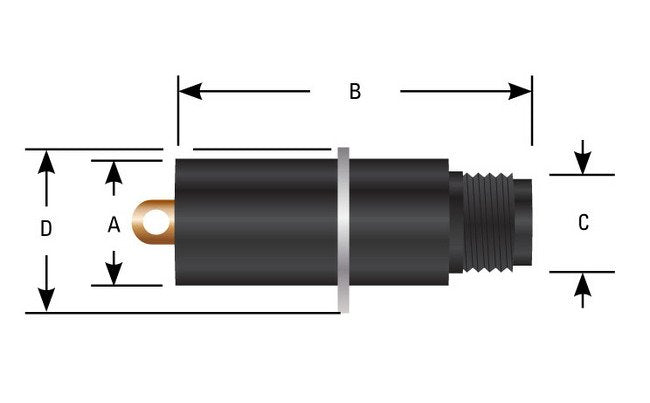

Dimensions A Diameter
.380 in | 9.65 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions C
.310 in | 7.9 mm
Dimensions D Diameter
.562 in | 14.3 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
C 737
Specifications Solder Flange
Brass with tin plate
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
