High Voltage Recessed Coaxial Cable Assemblies
High Voltage Recessed Coaxial Cable Assemblies
SKU:HIG-4640de
Enhanced safety & reliability with High Voltage Recessed Coaxial Cable Assemblies. Voltage rating: 15 kVDC.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High Voltage Recessed Coaxial Cable Assemblies
$99.99
Quantity: 1
Claim Your Seller Account
High Voltage Recessed Coaxial Cable Assemblies
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

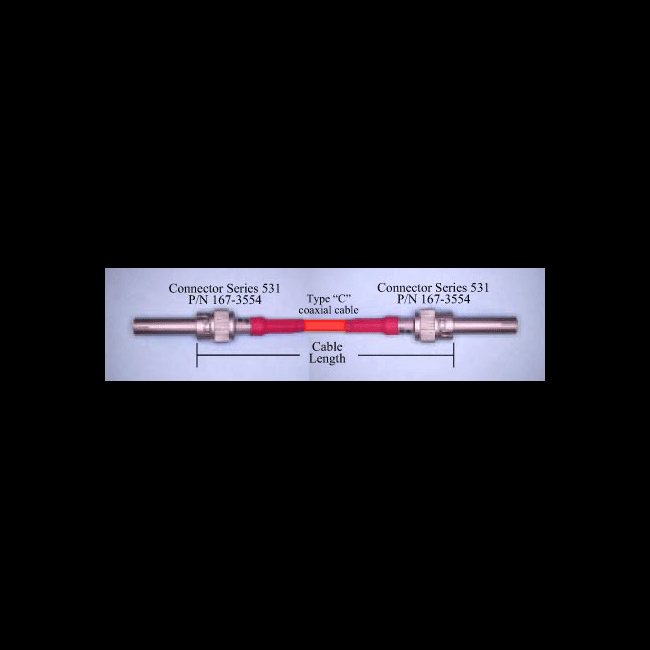

Experience enhanced safety with our High Voltage Recessed Coaxial Cable Assemblies in Series 531. Designed to minimize the risk of electrical shock, these cable assemblies feature recessed contacts, spring finger body contact, and a reliable ground circuit. With a voltage rating of 15 kVDC and operating temperature range of -40 to 85°C, these double-ended plug cable assemblies ensure secure connections and peace of mind in high voltage environments.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Ordering Information 0
Cable Assembly Ordering Information Length Tolerance Chart Example : 167-4237-10F-8N Length Tolerance Cable Assembly Type 7 1/2' or less ±1/4" 10 feet 8 inches 7 1/2' to 12 1/2' ±1" Example : 167-4237-18N 12 1/2' to 22 1/2' ±1 1/2" Cable Assembly Type 22 1/2' to 35' ±2" 18 inches 35' to 50' ±3" 50' to 70' ±4" 70' to 100' ±5"
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications End 1
167-3554
Specifications End 2
167-3554
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates with all 531 series receptacles
Specifications Max Allowable Leakage
10 µA
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
