High Voltage Right Angle Backshell Hardware Connector
High Voltage Right Angle Backshell Hardware Connector
SKU:HIG-d37410
Durable High Voltage Connector Accessory with Brass Contacts, Aluminum Shell, and Flexible Plating Options for Institutional Applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Right Angle Backshell Hardware Connector
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Right Angle Backshell Hardware Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

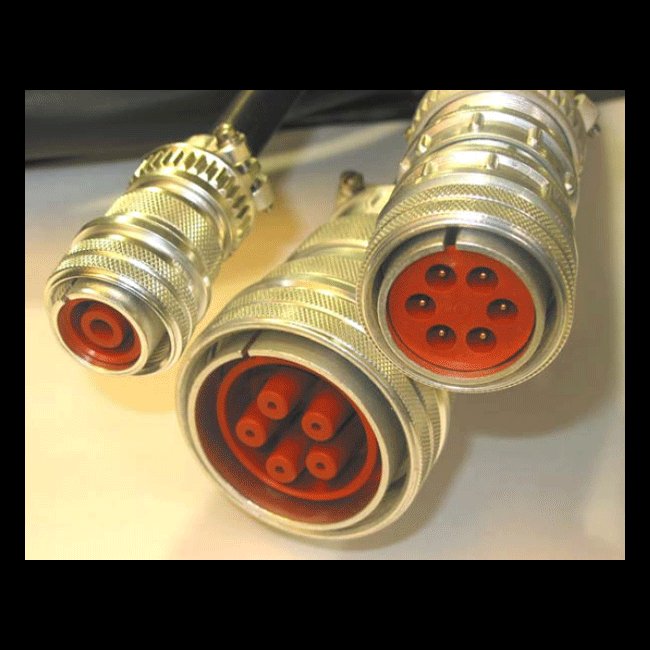

The CMC Series Electrical Connectors feature a durable design suitable for high voltage applications. Constructed with brass and gold-plated contacts meeting MIL-G-452C4 standards, this connector ensures reliable conductivity. The aluminum alloy shell and coupling nut, compliant with MIL-C-5015, MS-3100 series, provide robust protection. With options for electroless nickel plating and stainless steel hardware, this accessory is versatile for various institutional needs. Designed to withstand environmental extremes, including altitudes up to 70,000 ft and temperatures from -55 to +125 ºC, this backshell hardware connector is ideal for Electronic Countermeasures, Radar CRT Displays, Travelling Wave Tubes, and more.
Product Specifications
Applications 0
Electronic Countermeasures Radar CRT Displays Travelling Wave Tubes High Voltage Power Supplies Medical ApplicationsMedical Applications
Specifications Environmental Temperature
-55 to +125 ºC
Specifications Features
Corona Resistant Tapered InterfaceField or Factory AssembledUse with Shielded or Unshielded CableVarious Hardware Plating Available
Specifications Finish Specifications And Options
Electroless Nickel Plated per MIL-C-26074Optional Stainless Steel Hardware Stainless steel per ASTM A582, passivated per QQ-P-35
Specifications Insulators Material
Silicone Rubber per ZZ-R-765Thermoset glass filled Epoxy or Diallyl Phathalate per MIL-M-14
Specifications Pin Contacts Material
Brass, gold plated per MIL-G-452C4.
Specifications Sea Level Altitude
0 to 70,000 ft
Specifications Shell Coupling Nut And Related Hardware Material
Aluminum alloy in accordance with MIL-C-5015, MS-3100 series
Specifications Socket Contacts Material
Commercial bronze, Gold plated per MIL-G-45204
Specifications Wires Optional
No. 16 AWG thru No. 24 AWG stranded, PTFE or silicone coated insulated
