High Voltage Right Angle Receptacle - Ruggedized PeeWee Series
High Voltage Right Angle Receptacle - Ruggedized PeeWee Series
SKU:HIG-31f5e1
High Voltage Right Angle Receptacle from Ruggedized PeeWee Series, double-ended assembly with Nomex jacket for high performance in high-stress environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Right Angle Receptacle - Ruggedized PeeWee Series
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Right Angle Receptacle - Ruggedized PeeWee Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Right Angle Receptacle from the Ruggedized PeeWee Series is a double-ended assembly featuring etched FEP wire with a durable Nomex jacket. With a current rating of 5 Amp and a test voltage of 18 kVDC, this connector is designed for high-stress environments. Its robust construction ensures reliable performance in applications such as high voltage power supplies, semiconductor processing equipment, radar systems, and more. Meeting industry standards for quality and durability, this connector is ideal for demanding industrial and aerospace applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

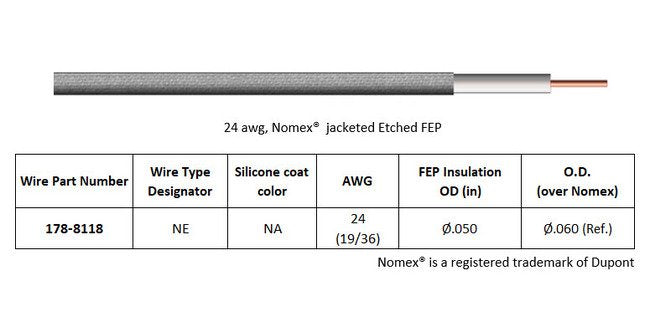

nomex over Ã.050 in
Cable Wire Properties Wire Insulation
Nomex over etched FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, R/A, Double-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
