High Voltage Right Angle Receptacle - Series 730/830
High Voltage Right Angle Receptacle - Series 730/830
SKU:HIG-5ca2a7
High voltage right angle receptacle for Series 730/830, 4-6 Amp, 15 kVDC. Sealed, front panel mount with fluorosilicone seal for reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Right Angle Receptacle - Series 730/830
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Right Angle Receptacle - Series 730/830
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 730/830 Receptacle Right Angle is designed for high voltage applications, featuring a current rating of 4-6 Amp, operating temperature range of -55 to 125°C, and a test voltage of 15 kVDC at 70,000 ft. It mates with various lead assemblies and offers maximum leak rate of 1 X 10-6 cc/sec. With a front panel mount style, sealed receptacle, and fluorosilicone seal material, this connector ensures reliable performance in demanding environments. Ideal for institutional and government procurement due to its non-standard part and LGH™ compatibility.
Ready to Grow Without Cash Flow Constraints?

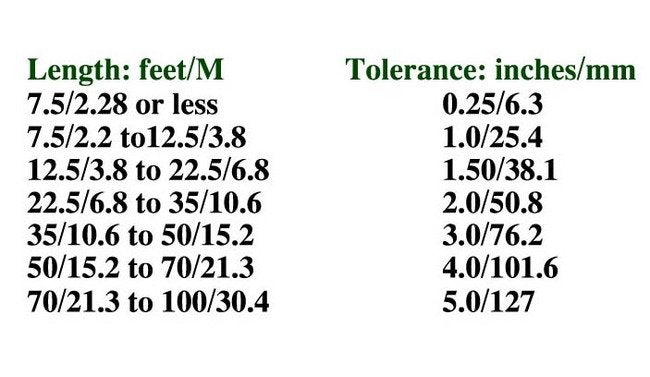

Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Dimensions A
.846 in | 21.5 mm
Dimensions B
.475 in | 12.1 mm
Dimensions C
.490 in | 12.5 mm
Dimensions D
.625 in | 15.9 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Ceramic | Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all Series 730,830 and LGH 1/2I lead assemblies. Also mates all 10 kVDC rated Reynolds C730 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Max Panel Thickness
.188 in | 4.78 mm
Specifications Operating Temperature
-55 to 125 ºC
Specifications Optional Mounting Hole A
.295 in | 7.49 mm
Specifications Optional Mounting Hole B
.323 in | 8.20 mm
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
5 to 6 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Seal Material
Fluorosilicone
Specifications Series
730
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
