High Voltage Ruggedized PeeWee Single Pin Connector 12-18 kVDC
High Voltage Ruggedized PeeWee Single Pin Connector 12-18 kVDC
SKU:HIG-9450ff
High Voltage Ruggedized PeeWee Single Pin Connector - Reliable power transmission for high-end applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Voltage Ruggedized PeeWee Single Pin Connector 12-18 kVDC
$89.99
Quantity: 1
Claim Your Seller Account
High Voltage Ruggedized PeeWee Single Pin Connector 12-18 kVDC
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Ruggedized PeeWee Single Pin Connector in the 12-18 kVDC range is designed for robust performance in demanding environments. Featuring a Si-coated FEP wire with a durable Nomex jacket, this connector ensures reliable power transmission. With a current rating of 5 Amp and operating temperature ranging from -55 to 125 °C, it is suitable for High Voltage Power Supplies, Radar Systems, Laser Designators, and more. Meeting standard specifications and compatibility with a range of connectors and cable assemblies, this connector delivers versatility and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

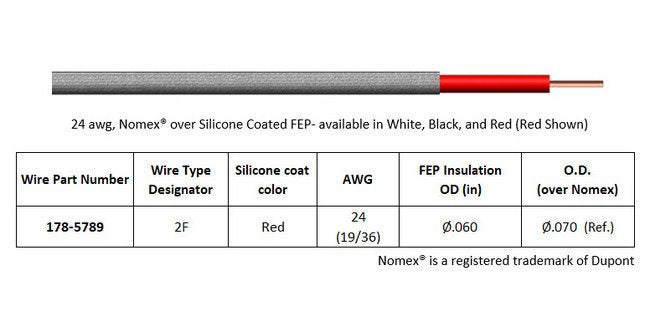

Cable Wire Properties Wire Diameter
nomex over Ã.060 in
Cable Wire Properties Wire Insulation
Nomex over silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Right Angle, Single-ended, C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
