The Series 730/830 Receptacle Right Angle Connector is designed for high reliability in high voltage applications, with a current rating of 4-6 Amps and pressure seals for up to 70,000 ft. altitude. This connector mates with various cable assemblies, providing secure and leak-proof connections in extreme environments. Featuring ceramic and plastic insulator materials, gold-plated brass contacts, and silicone seals, this front panel mount connector ensures optimal performance in temperatures ranging from -55 to 125 ºC.
Ready to Grow Without Cash Flow Constraints?

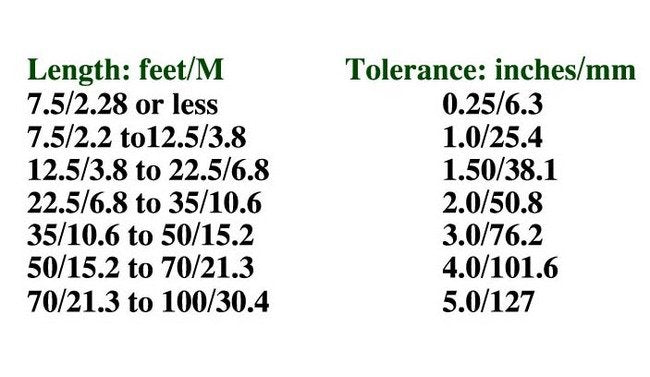

Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Dimensions A
.846 in | 21.5 mm
Dimensions B
.475 in | 12.1 mm
Dimensions C
.490 in | 12.5 mm
Dimensions D
.625 in | 15.9 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Ceramic | Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all Series 730,830 and LGH 1/2I lead assemblies. Also mates all 10 kVDC rated Reynolds C730 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Max Panel Thickness
.188 in | 4.78 mm
Specifications Operating Temperature
-55 to 125 ºC
Specifications Optional Mounting Hole A
.295 in | 7.49 mm
Specifications Optional Mounting Hole B
.323 in | 8.20 mm
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
5 to 6 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Seal Material
Silicone
Specifications Series
730
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
