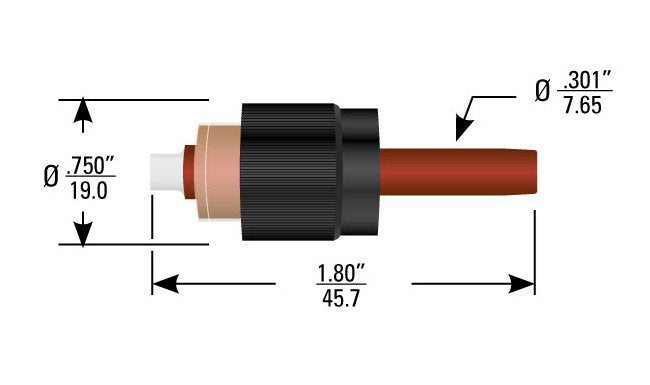

• High Voltage Series 720 Plug Kit - Image 1
  • High Voltage Series 720 Plug Kit - Image 2
1 2
Teledyne Reynolds →

High Voltage Series 720 Plug Kit

High Voltage Series 720 Plug Kit

HIG-e11c07

Reliable High Voltage Series 720 Plug Kit with altitude rating of 70,000 ft., 25 kVDC test voltage, and RoHS compliance.

$49.99
$49.99
Sale

Initiate Order

High Voltage Series 720 Plug Kit

High Voltage Series 720 Plug Kit

$49.99

Quantity: 1

Claim Your Seller Account

High Voltage Series 720 Plug Kit

High Voltage Series 720 Plug Kit

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The High Voltage Series 720 Plug Kit is designed for demanding applications requiring a reliable connection. With an altitude rating of 70,000 ft. and a current rating of 10 Amp, this plug kit ensures performance in extreme conditions. Tested up to 25 kVDC, it guarantees safe and efficient power transmission. Compliant with RoHS standards and featuring BeCu contact material with gold finish, it offers superior conductivity and durability. Mates with various receptacles for versatile compatibility.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1I
Specifications Mating Compatibility
Mates all series 720 receptacles and LGH LI series receptacles. Also mates Reynolds C720 series RC1525 and 3RC1525 receptacles; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
Specifications Wire Type
FEP
Wire Properties Accomodates Wire Diameter
.150 in | 3.81 mm
Wire Properties Wire Pn
167-9610
