High Voltage Series 720 Plug Kit
High Voltage Series 720 Plug Kit
SKU:HIG-fa5769
High Voltage Series 720 Plug Kit - Silicone insulator, 10 Amp current rating, 25 kVDC test voltage, LGHâ„¢ compatible.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Series 720 Plug Kit
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Series 720 Plug Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

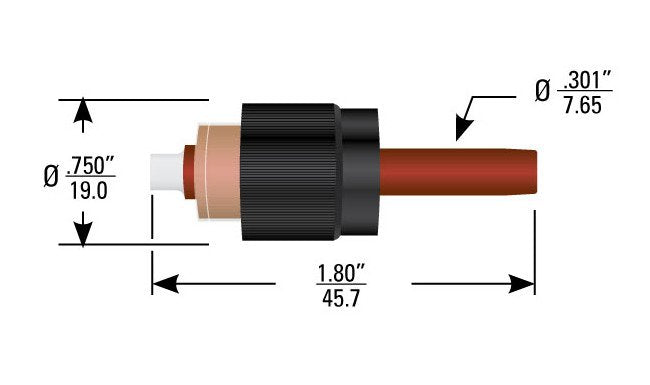

The High Voltage Series 720 Plug Kit is designed for demanding applications, featuring a silicone insulator for 0.110" Dia. wire and a current rating of 10 Amp. It can operate in temperatures ranging from -55 to 125 ºC and withstands a test voltage of 25 kVDC at 70,000 ft. This kit is compatible with LGH™ 1I and various receptacles, making it a reliable choice for high voltage single pin connectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Rubber
Specifications Lgh Compatibility
LGH 1I
Specifications Mating Compatibility
Mates all series 720 receptacles and LGH LI series receptacles. Also mates Reynolds C720 series RC1525 and 3RC1525 receptacles; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
Wire Properties Accomodates Wire Diameter
0.110 in | 2.79 mm
