High Voltage Series 720 Plug Kit
High Voltage Series 720 Plug Kit
SKU:HIG-f94f84
High performance Series 720 Plug Kit for 10-25 kVDC applications. RoHS compliant with durable Fluorosilicone insulator material.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Series 720 Plug Kit
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Series 720 Plug Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

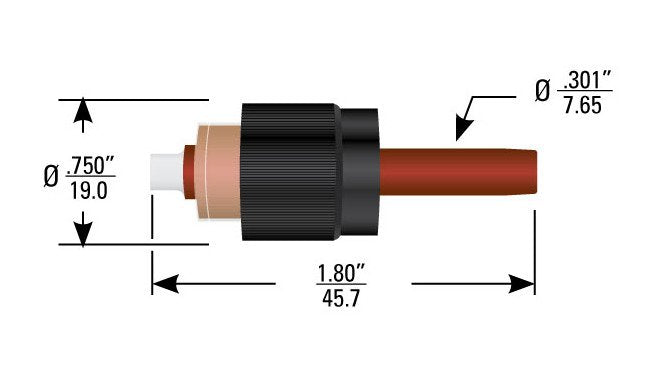

The High Voltage Series 720 Plug Kit is designed for 10, 15, 20, and 25 kVDC applications, featuring a Plug Bag Assembly for easy installation. With an Altitude/Reduced Pressure Rating of 70,000 ft., Current Ratings up to 10 Amp, and operating temperatures from -55 to 125 ºC, this kit ensures reliable performance in challenging environments. Compliant with RoHS standards and crafted with Fluorosilicone insulator material, this kit guarantees both quality and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
.100 in | 2.54 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Fluorosilicone
Specifications Lgh Compatibility
LGH 1I
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
720
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
Specifications Wire Type
FEP
Wire Properties Wire Pn
167-7628
