High Voltage Series 720 Receptacle Right Angle Connector
High Voltage Series 720 Receptacle Right Angle Connector
SKU:HIG-b2a71b
Reliable High Voltage Series 720 Right Angle Connector for 25 kVDC applications, designed for durability & performance in demanding environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Voltage Series 720 Receptacle Right Angle Connector
$89.99
Quantity: 1
Claim Your Seller Account
High Voltage Series 720 Receptacle Right Angle Connector
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Series 720 Receptacle Right Angle Connector is designed for demanding applications requiring secure connections at 25 kVDC. With a robust design featuring a front panel mount and sealing for 1 ATM pressure, this connector ensures reliable performance in altitudes up to 70,000 ft. The fluorosilicone seals and gold-finished brass contacts guarantee durability and stable electrical conductivity in temperatures ranging from -55 to 125 ºC. Mating compatibility with various lead assemblies and stringent leak rate specifications make this connector ideal for high reliability applications.
Ready to Grow Without Cash Flow Constraints?

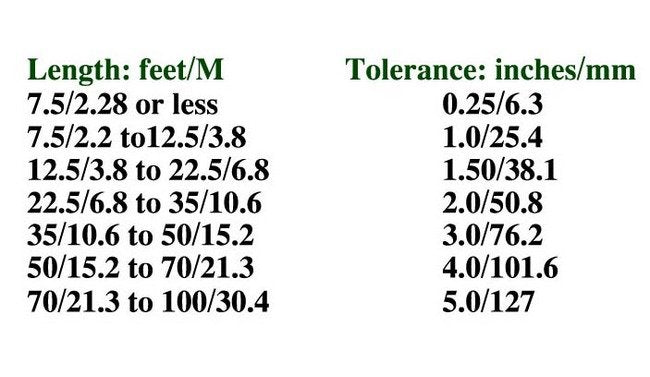

Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Dimensions A
1.360 in | 34.5 mm
Dimensions B
.630 in | 17.4 mm
Dimensions C
.635 in | 16.1 mm
Dimensions D
.960 in | 24.4 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1I
Specifications Mating Compatibility
Mates all series 720 and LGH LI lead assemblies Also mates all 20 kVDC rated Reynolds C720 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Max Panel Thickness
.250 in | 6.35 mm
Specifications Operating Temperature
-55 to 125 ºC
Specifications Optional Mounting Hole A
.480 in | 12.19 mm
Specifications Optional Mounting Hole B
.508 in | 12.90 mm
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
23 to 28 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Seal Material
Fluorosilicone
Specifications Series
720
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
