High Voltage Series 730 Plug Kit for secure connections in high-altitude environments. Silicone insulator, gold-finished contacts, versatile compatibility.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Series 730 Plug Kit Plastic Coupling Nut
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Series 730 Plug Kit Plastic Coupling Nut
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

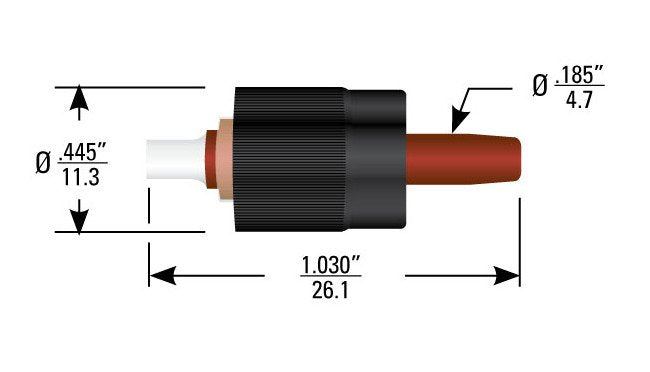

The High Voltage Series 730 Plug Kit Plastic Coupling Nut is designed for critical applications requiring reliable performance under extreme conditions. With a voltage rating of 10 kVDC and current rating of 4-6 Amp, this threaded coupling nut assembly is perfect for high-altitude environments up to 70,000 ft. The silicone insulator material ensures robust insulation, while the gold-finished female contact guarantees secure connectivity. Mating compatibility with various receptacles and a wide wire diameter accommodation make this plug kit versatile and dependable.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all series 730 & 830 receptacles and LGH 1/2I series receptacles. Also mates Reynolds C730 series RC1505,2RC1505 and 3RC1505 receptacles.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
FEP
Wire Properties Accomodates Wire Diameter
0.080 in | 2.03 mm
Wire Properties Wire Pn
167-9543
